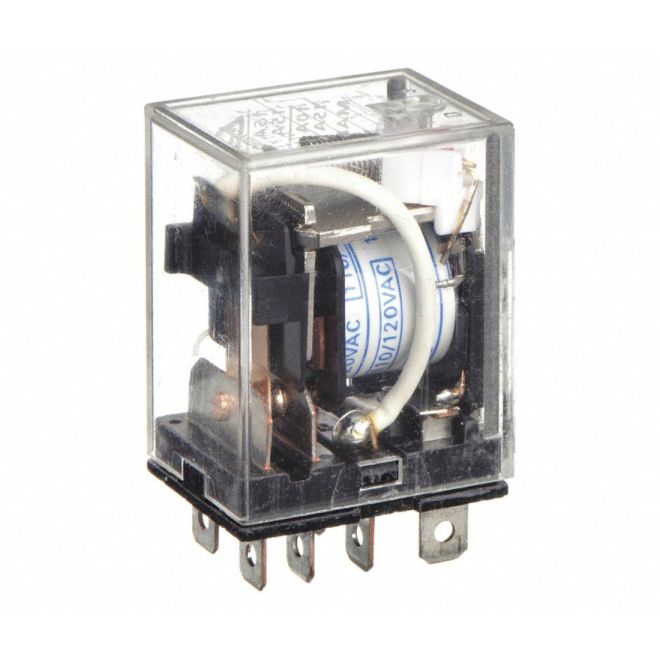

Omron LY1N-AC110/120 1-Pole SPDT Bi-Power Relay

SKU#:

2182

Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY1NAC110/120 is equipped with an arc barrier for arc interruption. Omron LY1N-AC110/120 is comparable to Schneider Magnecraft 782XAXC-120A, 782XBXC-120A, 782XAXCL-120A, 782XBXM4L-120A, W78ARNCSX-9 & W78ARCSX-111, Omron LY1-AC110/120, Deltrol 20613-80, TURCK Releco C7-A10X/120VAC & C7-A10/120VAC, IDEC RH2B-U-AC120V, RH2B-UL-AC120V & RH2B-ULCAC110-120V, Cutler Hammer D7PR1A-A3, D7PR11A-A3 & D7PR2A-A3 and NTE R14-11A10-120.
Specifications
Brand Omron Automation
Manufacturer Part Number LY1N AC110/120
Manufacturer Alternate Number LY1NAC110120
UPC 4536853605919
Coil Voltage 120VAC
Contact Arrangement 1 Form C (SPDT)
Terminal Type Plug-in
Mounting Type Base/Socket
Indicator LED
Max. Switching Voltage 250 VAC, 125 VDC
Max. Switching Current 15 A
Rated Current 12 A at 110 VAC, 7 A at 24 VDC
Rated Load (Resistive) 17 A at 110 VAC, 15 A at 24 VDC
Max. Switching Power(Resistive) 1,700 VA, 360 W
Max. Switching Power (Inductive) 1,100 VA, 170 W
Minimum Load 100 mA at 5 VDC
Operating Temperature -25°C - +55°C
Power Consumption Approx. 1.00 VA to 1.20 VA (60 Hz)
RoHS Compliant Yes
Duty Cycles 200,000
Height (mm) 42.4mm
Width (mm) 21.5mm
Depth (Length) (mm) 28mm
Weight (lbs) 0.09
UOM ea
