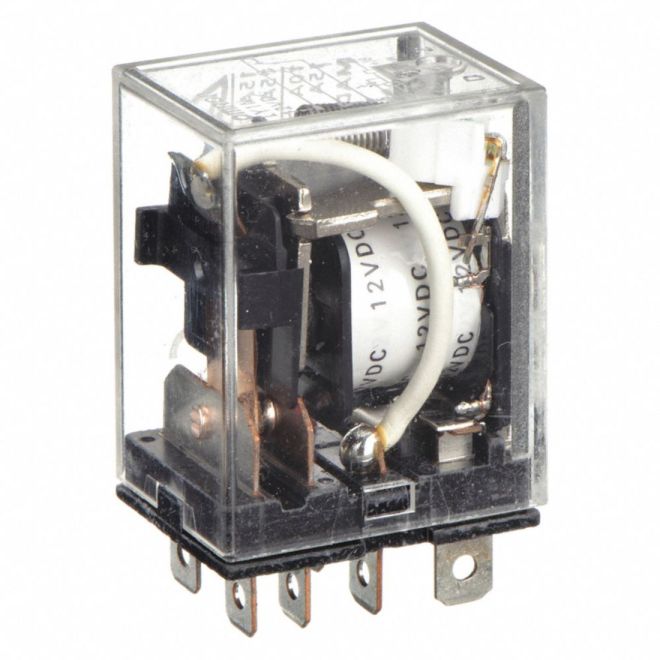

Omron LY1N-DC12 1-Pole SPDT 15A Bi-Power Relay
SKU#:
2186
Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY1NDC12 is equipped with an arc barrier for arc interruption. Omron LY1N-DC12 is comparable to Schneider Magnecraft 782XAXC-12D, 782XAXM4L-12D & W78RCSX-97, Omron LY1-DC12, TURCK Releco C7-A10/012VDC & C7-A10DX/012VDC and Cutler Hammer D7PF1AR1 & D7PR1R1-A3.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | LY1N DC12 |
| Manufacturer Alternate Number | LY1NDC12 |
| UPC | 4536853605957 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 1 Form C (SPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 15 A |
| Rated Current | 14 A at 110 VAC, 7 A at 24 VDC |
| Rated Load (Resistive) | 19 A at 110 VAC, 15 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,700 VA, 360 W |
| Max. Switching Power (Inductive) | 1,100 VA, 170 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +55°C |
| Power Consumption | Approx. 900 mW |
| RoHS Compliant | Yes |
| Duty Cycles | 200,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 21.5mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
