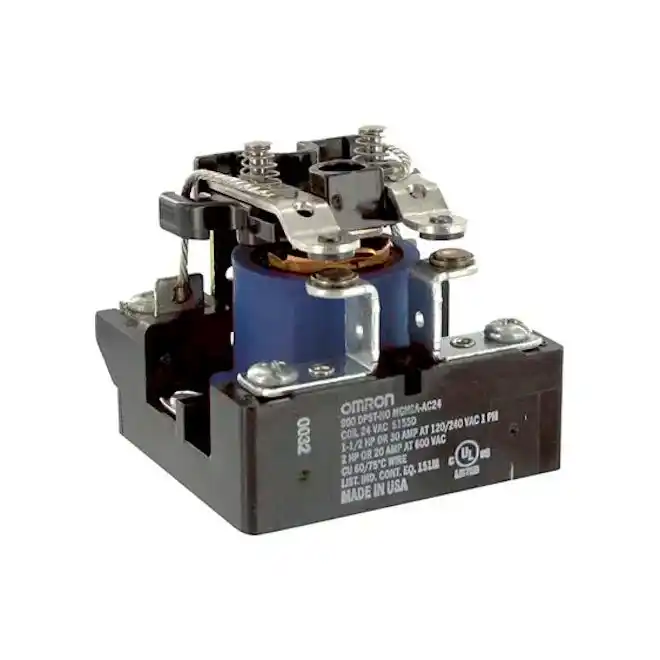

Omron MGN2A-AC24 Short Base DPST NO Power Relay
SKU#:
265296
Omron MGN series is a 30A heavy duty relay. Class F coil insulation system for 155°C (311°F). Coil molded in DuPont Rynite® for environmental protection. Rugged construction rivets terminals to base. MGN2A-AC24 is CULUS Listed. Short Circuit Current Rating (SCCR) of 5kA, 600VAC. Omron MGN2A-AC24 is comparable to Schneider Magnecraft W199AX-8, TE Connectivity Tyco Potter & Brumfield 9-1393129-6, 1393130-9, PRD7AG0-24, PRD7AY0-24, Deltrol 20240-82.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MGN2A AC24 |
| Manufacturer Alternate Number | MGN2AAC24 |
| UPC | 689205925143 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 2 Form A (DPST-N/O) |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Max. Switching Voltage | 600 VAC 60Hz |
| Max. Switching Current | 30 A |
| Rated Current | 30A at 120 VAC, 30A at 28 VDC |
| Operating Temperature | -45°C - +80°C |
| Power Consumption | 9.5 VA |
| Duty Cycles | 100,000 |
| Height (mm) | 56mm (2.19") |
| Width (mm) | 63.5mm |
| Depth (Length) (mm) | 63.5mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
