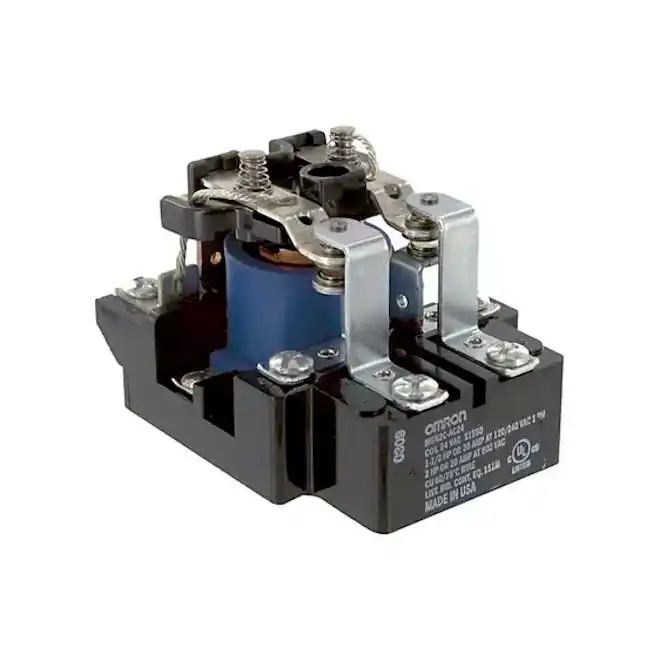

Omron MGN2C-AC24 Long Base DPDT Power Relay
SKU#:
265319
Omron MGN series is a 30A heavy duty relay. Class F coil insulation system for 155°C (311°F). Coil molded in DuPont Rynite® for environmental protection. Rugged construction rivets terminals to base. MGN2C-AC24 is CULUS Listed. Short Circuit Current Rating (SCCR) of 5kA, 600VAC. Omron MGN2C-AC24 is comparable to Schneider Magnecraft W199AX-13, TE Connectivity Tyco Potter & Brumfield Schrack 1-1393127-1, 2-1393127-9, PRD11AG0-24, PRD11AY0-24, Deltrol 20241-82.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MGN2C AC24 |
| Manufacturer Alternate Number | MGN2CAC24 |
| UPC | 820419051536 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 2 Form C (DPDT-N/O, N/C) |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Max. Switching Voltage | 600 VAC 60Hz |
| Max. Switching Current | 30 A |
| Rated Current | 30A at 120 VAC, 30A at 28 VDC |
| Operating Temperature | -45°C - +80°C |
| Power Consumption | 9.5 VA |
| Duty Cycles | 100,000 |
| Height (mm) | 60.5mm |
| Width (mm) | 63.5mm |
| Depth (Length) (mm) | 84.5mm |
| Weight (lbs) | 0.62 |
| UOM | ea |
