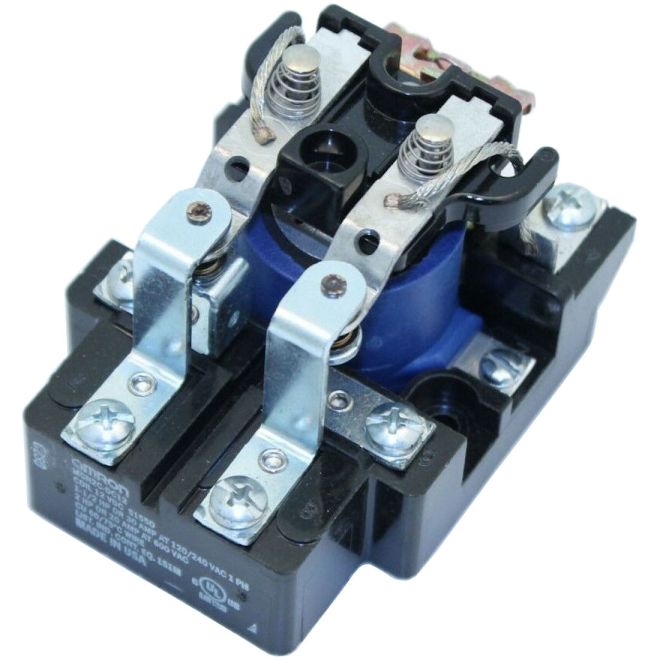

Omron MGN2C-DC12 Long Base DPDT Power Relay
SKU#:
265318
Omron MGN series is a 30A heavy duty relay. Class F coil insulation system for 155°C (311°F). Coil molded in DuPont Rynite® for environmental protection. Rugged construction rivets terminals to base. MGN2C-DC12 is CULUS Listed. Short Circuit Current Rating (SCCR) of 5kA, 600VAC. Omron MGN2C-DC12 is comparable to Schneider Magnecraft W199X-12, TE Connectivity Tyco Potter & Brumfield Schrack 3-1393127-5, 6-1393127-1, PRD11DG0-12, PRD11DY0-12, Deltrol 20245-81.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MGN2C DC12 |
| Manufacturer Alternate Number | MGN2CDC12 |
| UPC | 820646866118 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 2 Form C (DPDT-N/O, N/C) |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Max. Switching Voltage | 125 VDC |
| Max. Switching Current | 30 A |
| Rated Current | 30A at 120 VAC, 30A at 28 VDC |
| Operating Temperature | -45°C - +115°C |
| Power Consumption | 2 W |
| Duty Cycles | 100,000 |
| Height (mm) | 60.5mm |
| Width (mm) | 63.5mm |
| Depth (Length) (mm) | 84.5mm |
| Weight (lbs) | 0.62 |
| UOM | ea |
