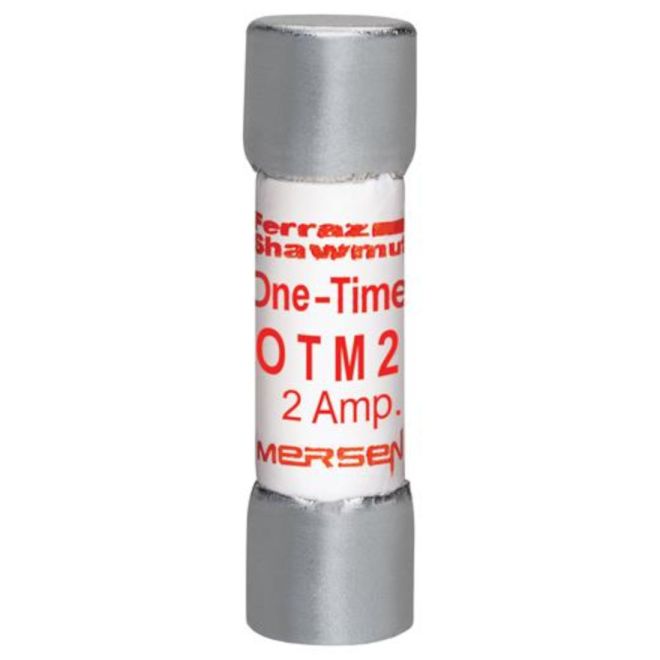

Mersen OTM2 Ferraz Fast-Acting Midget Fuse Y217256
SKU#:
27437
Mersen one-time OTM2 midget fuses provide low-cost protection for 250 volt AC general purpose lighting, heating, control circuits, etc. where timedelay is not required. (Not for Branch Circuit Protection). Ferraz Shawmut OTM2 is comparable to Eaton Cooper Bussmann ABU-2, BAN-2, BAF-2, Littelfuse BLF002, BLN2.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | OTM2 |
| Manufacturer Alternate Number | Y217256 |
| UPC | 782001705022 |
| Rated Voltage AC | 250VAC |
| Rated Current | 2A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Paper |
| Type | Fast Acting Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
