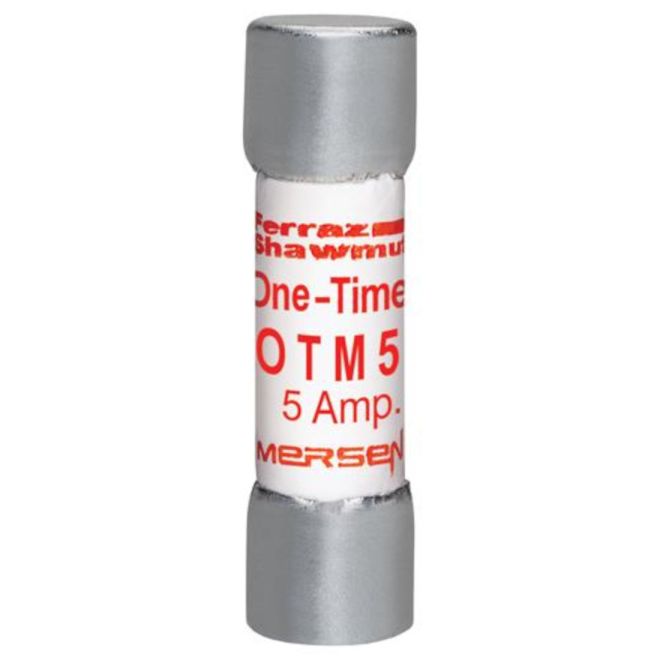

Mersen OTM5 Ferraz Fast-Acting Midget Fuse C222527
SKU#:
27440
Mersen one-time OTM5 midget fuses provide low-cost protection for 250 volt AC general purpose lighting, heating, control circuits, etc. where timedelay is not required. (Not for Branch Circuit Protection). Ferraz Shawmut OTM5 is comparable to Eaton Cooper Bussmann ABU-5, BAN-5, BAF-5, Littelfuse BLF005, BLN5.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | OTM5 |
| Manufacturer Alternate Number | C222527 |
| UPC | 782001705053 |
| Rated Voltage AC | 250VAC |
| Rated Current | 5A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Paper |
| Type | Fast Acting Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
