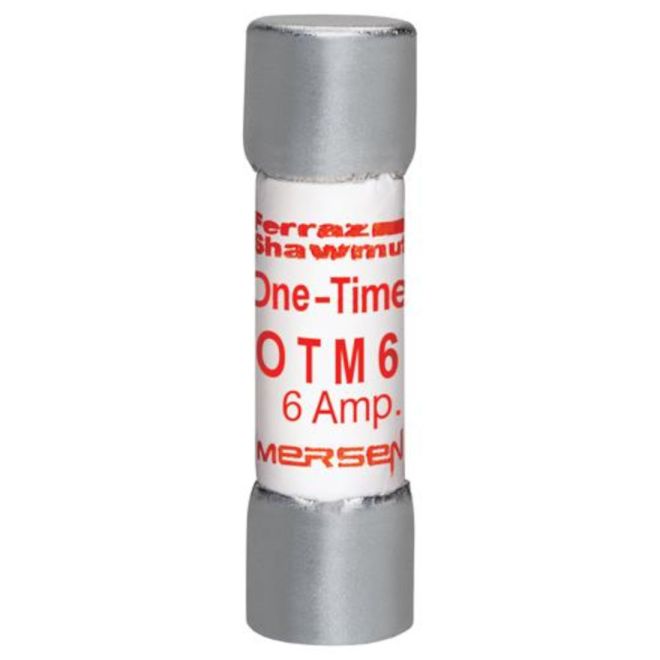

Mersen OTM6 Ferraz Fast-Acting Midget Fuse T223048
SKU#:
27441
Mersen one-time OTM6 midget fuses provide low-cost protection for 250 volt AC general purpose lighting, heating, control circuits, etc. where timedelay is not required. (Not for Branch Circuit Protection). Ferraz Shawmut OTM6 is comparable to Eaton Cooper Bussmann BAF-6-1/4, BAF-6, ABU-6, BAN-6, Reliance 64676-11D, Littelfuse BLF006, BLN6.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | OTM6 |
| Manufacturer Alternate Number | T223048 |
| UPC | 782001705060 |
| Rated Voltage AC | 250VAC |
| Rated Current | 6A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Paper |
| Type | Fast Acting Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
