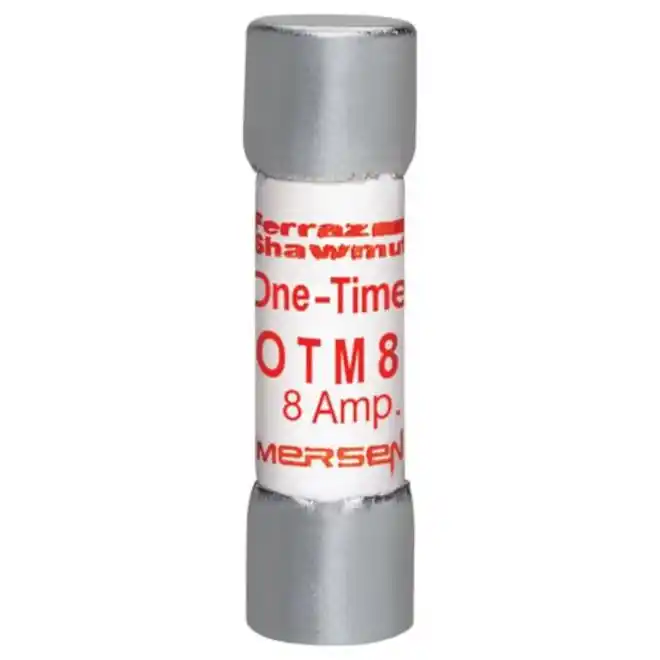

Mersen OTM8 Ferraz Fast-Acting Midget Fuse Z200835
SKU#:
27442
Mersen one-time OTM8 midget fuses provide low-cost protection for 250 volt AC general purpose lighting, heating, control circuits, etc. where timedelay is not required. (Not for Branch Circuit Protection).
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | OTM8 |
| Manufacturer Alternate Number | Z200835 |
| UPC | 7.82E+11 |
| Rated Voltage AC | 250VAC |
| Rated Current | 8A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Paper |
| Type | Fast Acting Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
