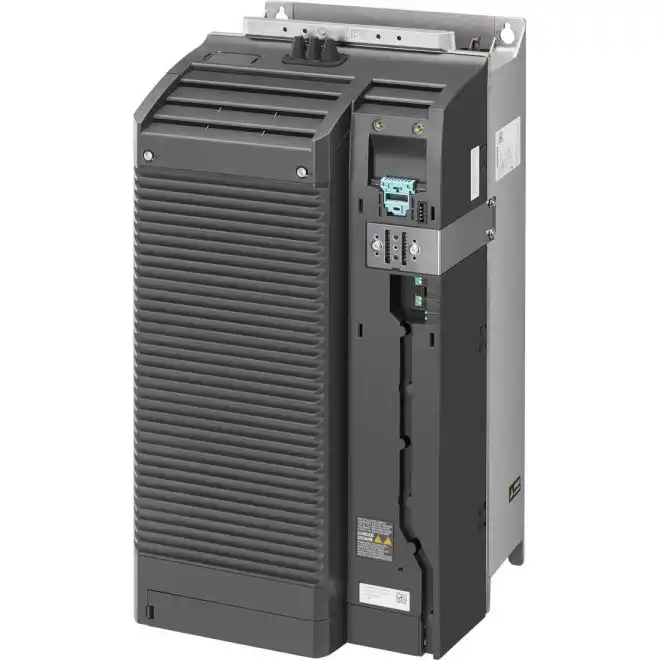

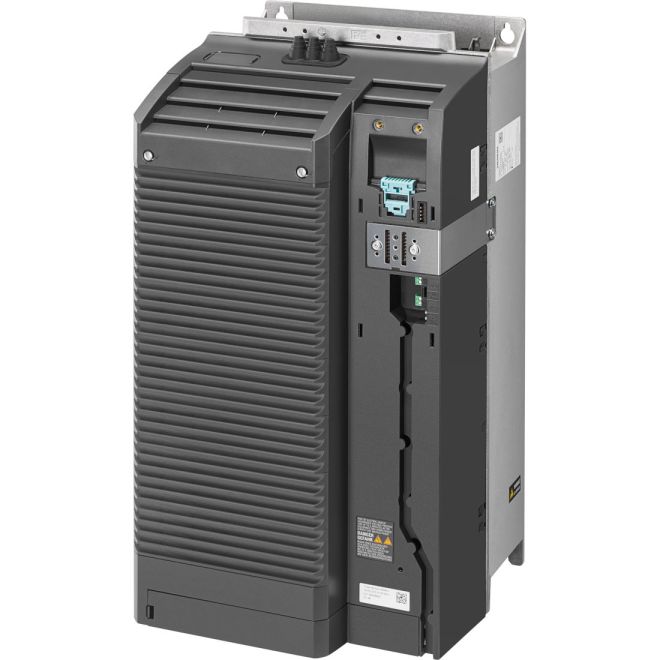

SIEMENS 6SL3210-1PE31-1UL0 VFD 75hp 380VAC-480VAC
SKU#:
524625
SIEMENS 6SL3210-1PE31-1UL0 SINAMICS G120 power module PM240-2 without filter with built-in braking chopper 3AC380-480V +10/-20% 47-63HZ output high overload: 45KW for 200% 3S,150% 57S,100% 240S ambient temperature -20 to +50 degrees C (HO) output low overload: 55kW for 150% 3S,110% 57S,100% 240S ambient temperature -20 to +40 degrees C (LO) 551 X 275 X 237 (HXWXD), FSE protection IP20 without control unit and panel approved for CU firmware - version V4.7 HF8.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6SL3210-1PE31-1UL0 |
| Manufacturer Alternate Number | 6SL32101PE311UL0 |
| UPC | 804766090912 |
| Control Type | Linear V/f, Square Law V/f, Multi-Point V/f |
| Speed Range | 0Hz - 550Hz |
| Supply Voltage Range | 380VAC - 480VAC |
| Power Phase | 3-Phase |
| IP Rating | IP20 |
| KW Rating | 45kW, 55kW |
| Constant Torque-Horsepower | 60HP |
| Constant Torque-Current | 94A |
| Variable Torque-Horsepower | 75HP |
| Variable Torque-Current | 104A |
| Height (mm) | 551mm |
| Width (mm) | 275mm |
| Depth (Length) (mm) | 237mm |
| Weight (lbs) | 57.32 |
| UOM | ea |
