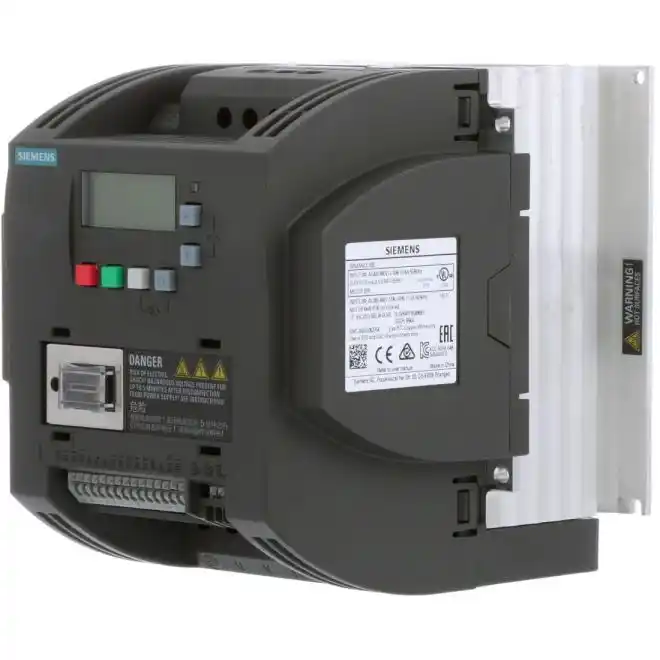

SIEMENS 6SL3210-5BE24-0UV0 VFD 5hp 380VAC-480VAC
SKU#:
524733
The SINAMICS V20 comes in four frame sizes from 1/6HP to 20HP. Basic applications such as pumps, fans, compressors and conveyor systems are easily accomplished with built-in wizards. It can also be used for basic drive tasks in the processing and material handling industries. SIEMENS 6SL3210-5BE24-0UV0 compact drive can be mounted side-by-side, and since no further modules or add-on options are required, installation time is minimized.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6SL3210-5BE24-0UV0 |
| Manufacturer Alternate Number | 6SL32105BE240UV0 |
| UPC | 887621056247 |
| Communications | USS, Modbus RTU |
| Control Type | Linear V/f, Square Law V/f, Multi-Point V/f |
| Speed Range | 0Hz - 550Hz |
| Supply Voltage Range | 380VAC - 480VAC |
| Power Phase | 3-Phase |
| IP Rating | IP20 |
| KW Rating | 4kW |
| Digital Operator | Built-in |
| Constant Torque-Horsepower | 5HP |
| Constant Torque-Current | 8.8A, 8.2A |
| Variable Torque-Horsepower | 5HP |
| Variable Torque-Current | 8.8A, 8.2A |
| Height (mm) | 160mm |
| Width (mm) | 140mm |
| Depth (Length) (mm) | 165mm |
| Weight (lbs) | 3.53 |
| UOM | ea |
