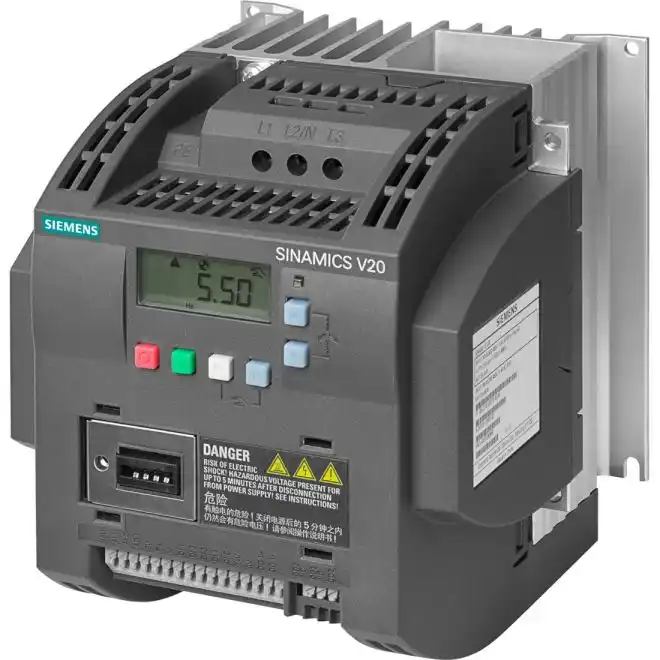

SIEMENS 6SL3210-5BB21-1UV0 VFD 1.5hp 200VAC-240VAC
SKU#:
524711
The SINAMICS V20 is a simple, versatile and cost-effective drive system for basic applications such as pumps, fans, compressors, conveyors and material handling in the power range from 1/6-20 hp. It sets itself apart with its quick commissioning, ease-of-operation and robustness. SIEMENS 6SL3210-5BB21-1UV0 compact drive can be mounted side-by-side, and since no further modules or add-on options are required, installation time is minimized.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6SL3210-5BB21-1UV0 |
| Manufacturer Alternate Number | 6SL32105BB211UV0 |
| UPC | 887621116712 |
| Communications | USS, Modbus RTU |
| Control Type | Linear V/f, Square Law V/f, Multi-Point V/f |
| Speed Range | 0Hz - 550Hz |
| Supply Voltage Range | 200VAC - 240VAC |
| Power Phase | 1-Phase |
| IP Rating | IP20 |
| KW Rating | 1.1kW |
| Digital Operator | Built-in |
| Constant Torque-Horsepower | 1.5HP |
| Constant Torque-Current | 6A |
| Variable Torque-Horsepower | 1.5hp |
| Variable Torque-Current | 6A |
| Height (mm) | 160mm |
| Width (mm) | 140mm |
| Depth (Length) (mm) | 165mm |
| Weight (lbs) | 3.53 |
| UOM | ea |
