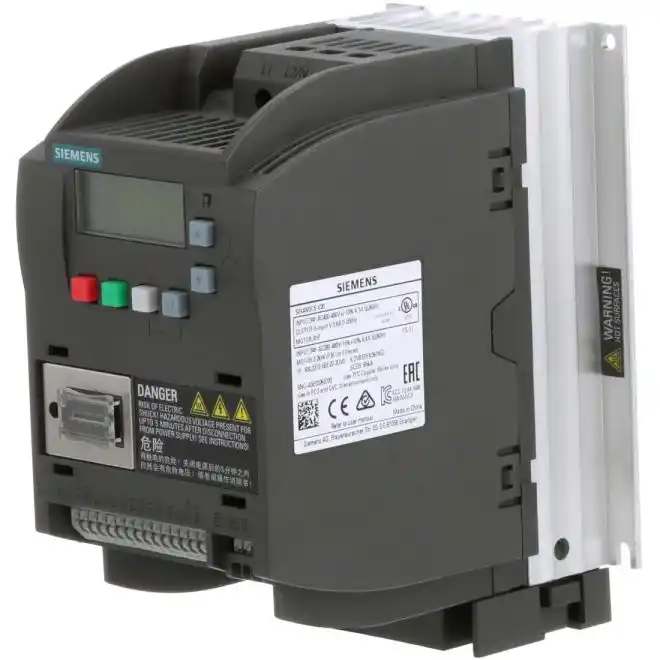

SIEMENS 6SL3210-5BE22-2UV0 VFD 3hp 380VAC-480VAC
SKU#:
524729
The SINAMICS V20 is a simple, versatile and cost-effective drive system for basic applications such as pumps, fans, compressors, conveyors and material handling in the power range from 1/6-20 hp. It sets itself apart with its quick commissioning, ease-of-operation and robustness. SIEMENS 6SL3210-5BE22-2UV0 compact drive can be mounted side-by-side, and since no further modules or add-on options are required, installation time is minimized.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6SL3210-5BE22-2UV0 |
| Manufacturer Alternate Number | 6SL32105BE222UV0 |
| UPC | 887621056223 |
| Communications | USS, Modbus RTU |
| Control Type | Linear V/f, Square Law V/f, Multi-Point V/f |
| Speed Range | 0Hz - 550Hz |
| Supply Voltage Range | 380VAC - 480VAC |
| Power Phase | 3-Phase |
| IP Rating | IP20 |
| KW Rating | 2.2kW |
| Digital Operator | Built-in |
| Constant Torque-Horsepower | 3hp |
| Constant Torque-Current | 5.6A, 4.8A |
| Variable Torque-Horsepower | 3hp |
| Variable Torque-Current | 5.6A, 4.8A |
| Height (mm) | 166mm |
| Width (mm) | 90mm |
| Depth (Length) (mm) | 146mm |
| Weight (lbs) | 2.20 |
| UOM | ea |
