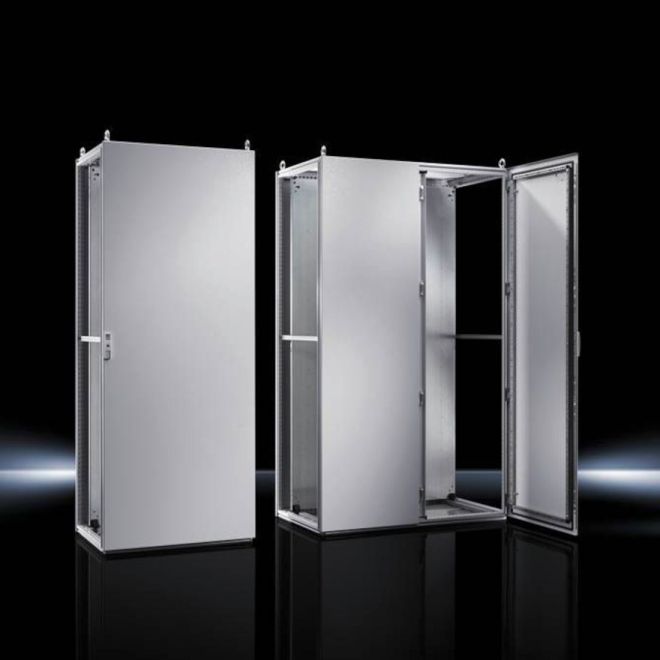

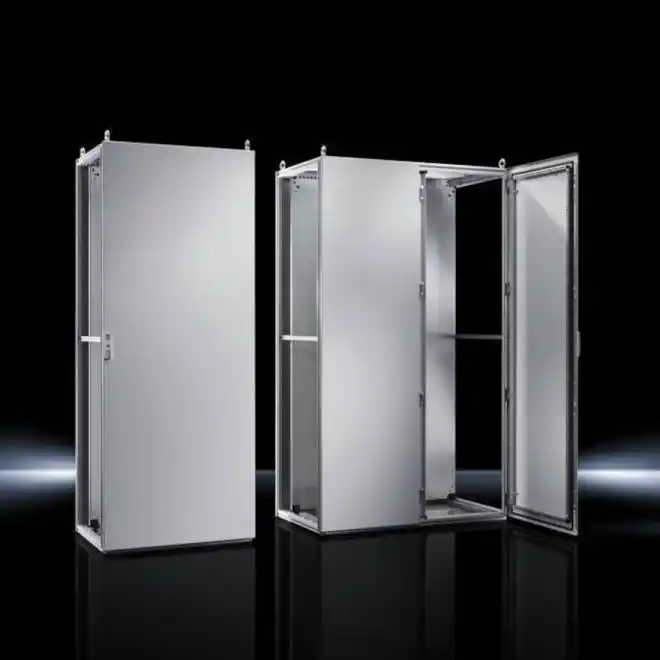

RITTAL 8005435 TS 8 Baying System IP55 NEMA 12
SKU#:
507667
For the North American market, Rittal has enhanced the product offerings to include the 8005435 baying systems TS 8 with mounting plate. Protection category IP 55.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8005435 |
| Manufacturer Alternate Number | 2000H1000W0500D |
| UPC | 639889856967 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, Rear Panel Detachable, 3mm Double-Bit Lock |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 3mm (0.12") |
| Height (mm) | 2000mm (79") |
| Width (mm) | 1000mm (39") |
| Depth (Length) (mm) | 500mm (20") |
| Weight (lbs) | 346.79 |
| UOM | ea |
