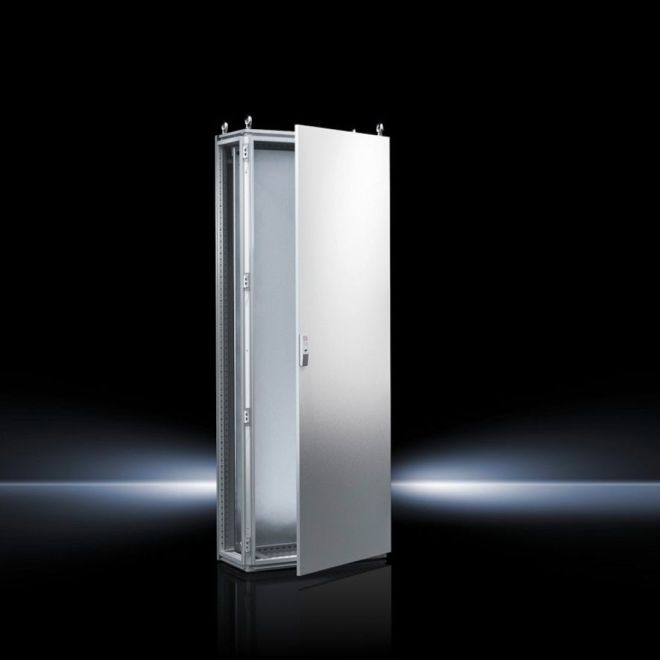

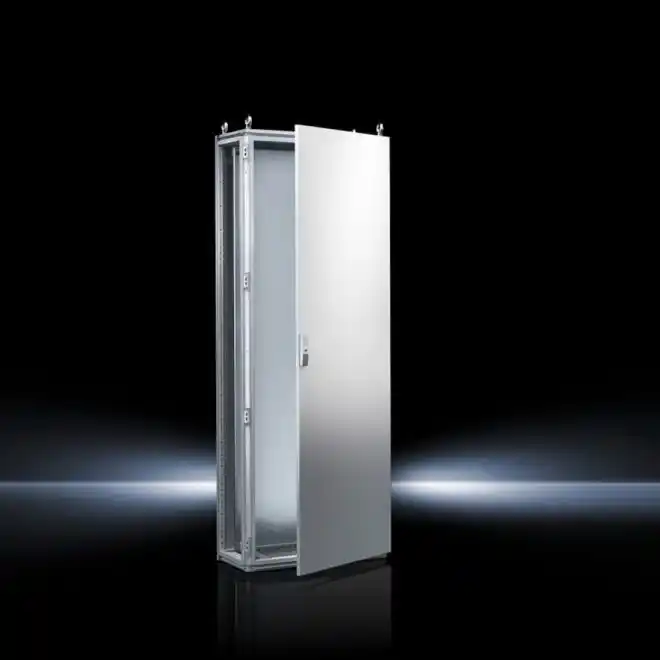

RITTAL 8684500 Baying Systems TS 8 8684.500
SKU#:
365425
Rittal UL Type 4X modular enclosure system provides unsurpassed flexibility, scalability, strength, and durability. Stainless steel 316 construction makes 8684500 TS 8 impervious to corrosive atmospheres. Stainless steel 316 offers excellent resistance to high temperatures and common chlorides (such as salt present in seawater), as well as chemicals like sulfuric acid. Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8684500 |
| Manufacturer Alternate Number | TS 8684.500 |
| UPC | 639889380356 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, Rear Panel, 2 TS Punched Rails 18 x 38 mm |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 1696mm (67") x 499mm (20") x 3mm (0.12") |
| Height (mm) | 1800mm (71") |
| Width (mm) | 600mm (24") |
| Depth (Length) (mm) | 400mm (16") |
| Weight (lbs) | 201.28 |
| UOM | ea |
