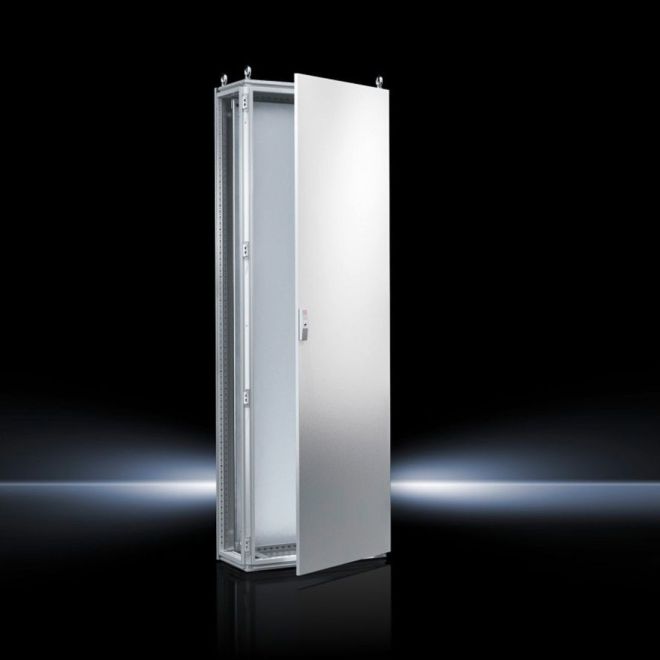

RITTAL 8604500 Baying Systems 2000mm 600mm 400mm
SKU#:
365391
Due to its symmetrical profile in terms of width and depth, Rittal 8604500 TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8604500 |
| Manufacturer Alternate Number | TS 8604.500 |
| UPC | 639889380127 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, Rear Panel, 2 TS Punched Rails 18 x 38 mm, 3mm Double-Bit Lock |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 1896mm (74.6") x 499mm (19.6") x 3mm (0.12") |
| Height (mm) | 2000mm (79") |
| Width (mm) | 600mm (24") |
| Depth (Length) (mm) | 400mm (16") |
| Weight (lbs) | 218.26 |
| UOM | ea |
