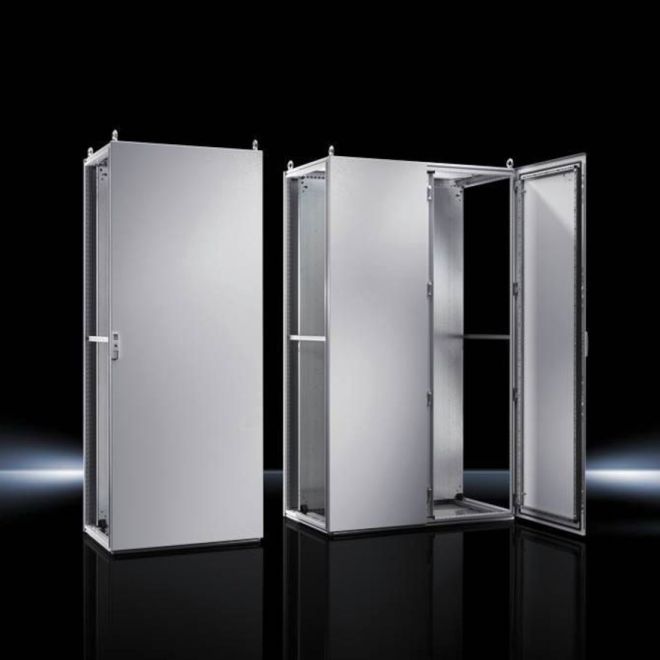

RITTAL 8225500 Baying Systems 2200mm 1200mm 500mm
SKU#:
365338
Due to its symmetrical profile in terms of width and depth, Rittal 8225500 TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8225500 |
| Manufacturer Alternate Number | 2200H1200W0500D |
| UPC | 639889379862 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 |
| Supply Includes | Mounting Plate, 4 Eyebolts, Roof Plate, Base Plates, Enclosure Frame with Doors, Rear Panel |
| Material Thickness | Door: 2mm (0.08") Enclosure Frame, Rear Wall, Roof & Base Plates: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 3mm (0.12") |
| Height (mm) | 2200mm (87") |
| Width (mm) | 1200mm (47") |
| Depth (Length) (mm) | 500mm (20") |
| Weight (lbs) | 309.31 |
| UOM | ea |
