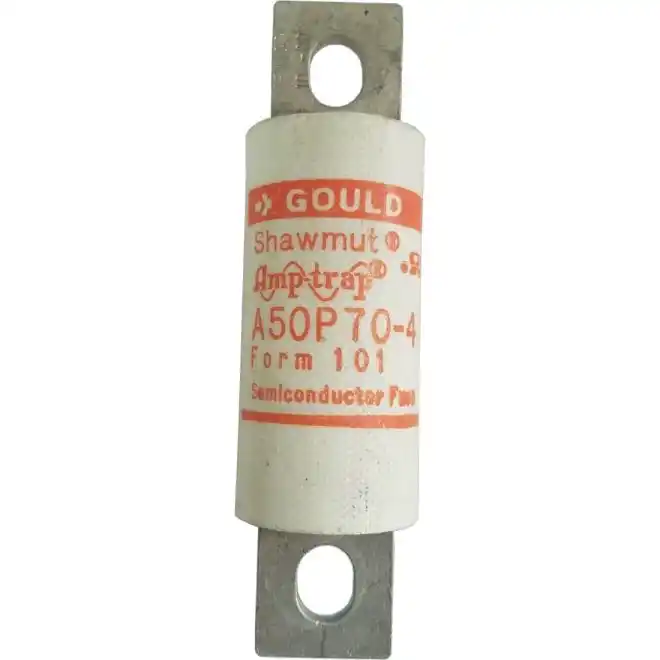

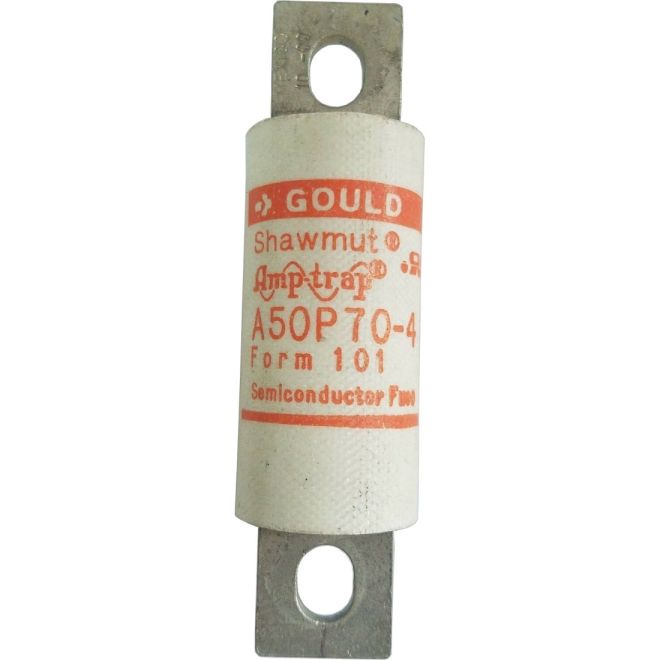

Mersen A50P70-4 Ferraz Form 101 High Speed Fuse
SKU#:
109739
Mersen A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P70-4 is typically used for replacement. Ferraz Shawmut A50P70-4 is comparable to Littelfuse L50S070.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A50P70-4 |
| Manufacturer Alternate Number | B230300 |
| UPC | 782001946029 |
| Rated Voltage AC | 500VAC |
| Rated Voltage DC | 450VDC |
| Rated Current | 70A |
| RoHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 35kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 26mm |
| Width (mm) | 26mm |
| Depth (Length) (mm) | 93mm |
| Weight (lbs) | 0.25 |
| UOM | ea |
