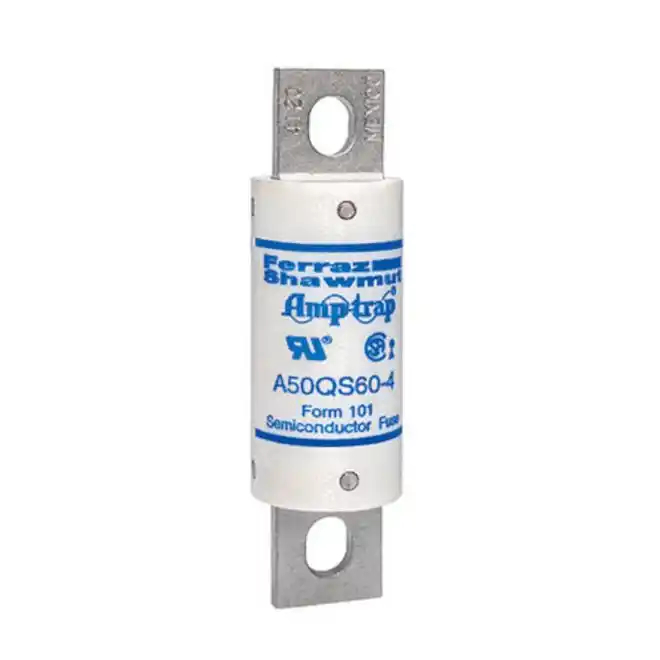

Mersen A50QS60-4 Ferraz Form 101 High Speed Fuse
SKU#:
243624
Mersen A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features - lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS60-4 is today's best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc. Ferraz Shawmut A50QS60-4 is comparable to Littelfuse LA50QS604.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A50QS60-4 |
| Manufacturer Alternate Number | A218937 |
| UPC | 782001947958 |
| Rated Voltage AC | 500VAC |
| Rated Voltage DC | 500VDC |
| Rated Current | 60A |
| RoHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 26mm |
| Width (mm) | 26mm |
| Depth (Length) (mm) | 93mm |
| Weight (lbs) | 0.25 |
| UOM | ea |
