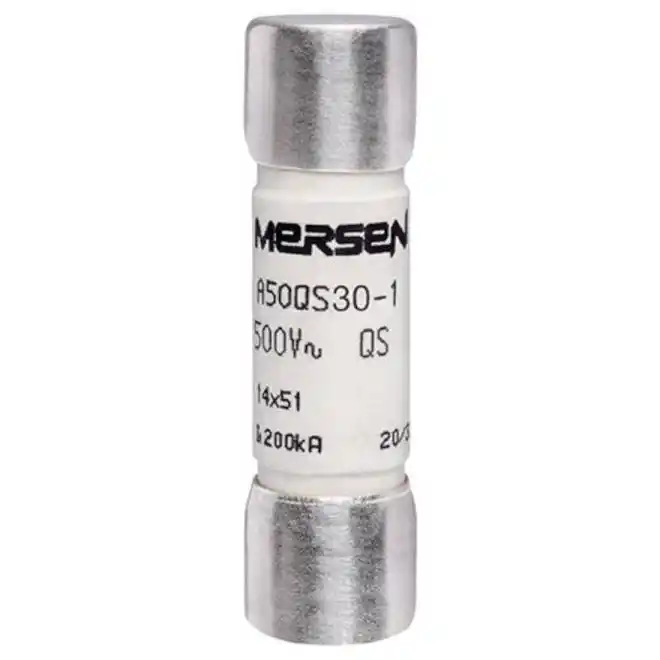

Mersen A50QS30-1 Ferraz Form 101 High Speed Fuse
SKU#:
109758
Mersen A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features - lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS30-1 is today's best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc. Ferraz Shawmut A50QS30-1 is comparable to GE 104X109AG004, Eaton Cooper Bussmann FWH-30A14F, Littelfuse LA50QS301.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A50QS30-1 |
| Manufacturer Alternate Number | Q230106 |
| UPC | 782001142421 |
| Rated Voltage AC | 500VAC |
| Rated Current | 30A |
| Speed/Characteristic | High Speed |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 51mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
