Mersen P266C Ferraz Fuse Block Semiconductor Fuse
SKU#:
111097

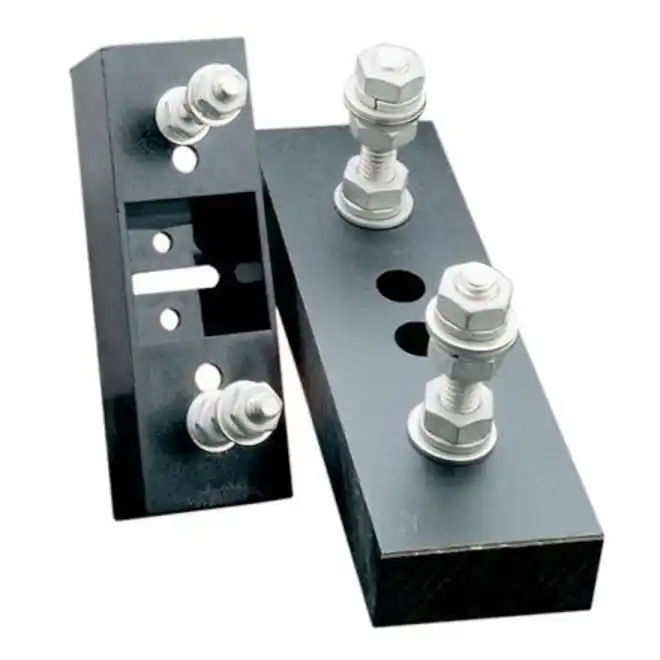

Mersen P243 and P266 series fuse blocks for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. The P292 series has a laminated phenolic insulator base with fuse clips. All studs, clips and mounting hardware are tin or zinc plated.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | P266C |
| Manufacturer Alternate Number | K212897 |
| UPC | 782001974251 |
| Rated Voltage AC | 1000VAC |
| Rated Voltage DC | 1000VDC |
| Rated Current | 600A |
| RoHS Compliant | Yes |
| Fuse Class | Semiconductor |
| Mounting Type | Direct Screw Mount |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Stud |
| Body/Insulating Material | Phenolic |
| Short Circuit Current Rating (SCCR) | 10kA |
| Number of Poles | 1 |
| Height (mm) | 77mm |
| Width (mm) | 77mm |
| Depth (Length) (mm) | 153mm |
| Weight (lbs) | 1.50 |
| UOM | ea |
