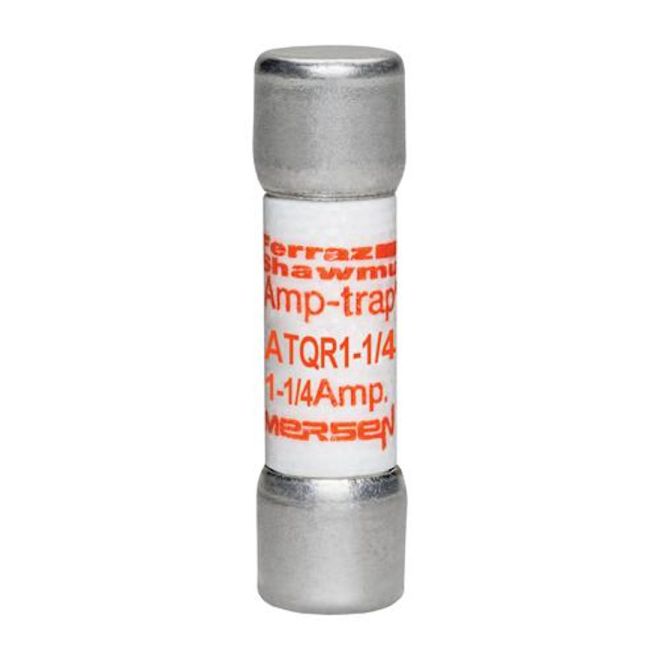

Mersen ATQR1-1/4 Ferraz Time Delay Class CC Fuse
SKU#:
110352
Mersen ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. ATQR1-1/4 fuses provide superior protection for the branch circuits of electrical distribution systems. Ferraz Shawmut ATQR1-1/4 is comparable to Eaton Cooper Bussmann FNQ-R-1-3/10, FNQ-R-1-1/4.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATQR1-1/4 |
| Manufacturer Alternate Number | T219874 |
| UPC | 782001906399 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Frequency | 50/60Hz |
| Rated Current | 1.25A |
| RoHS Compliant | Yes |
| Fuse Class | CC |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Time Delay |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
