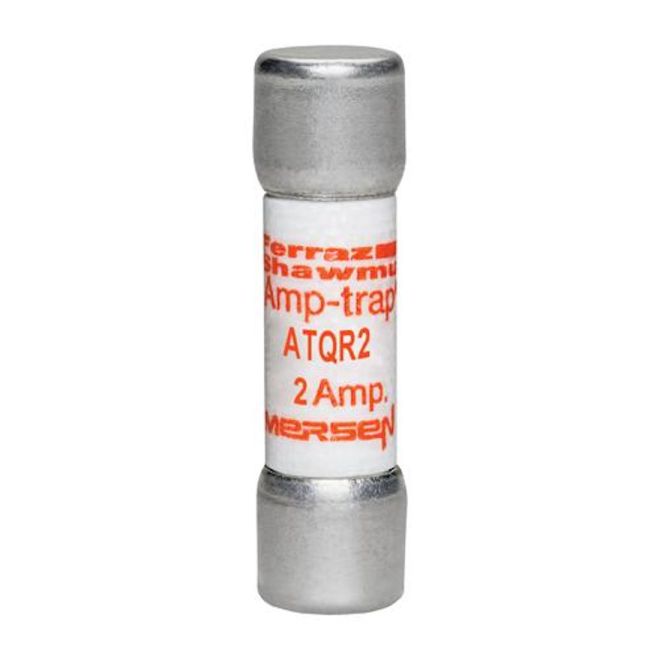

Mersen ATQR2 Ferraz Time Delay Class CC Fuse
SKU#:
110360
Mersen ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. ATQR2 fuses provide superior protection for the branch circuits of electrical distribution systems. Ferraz Shawmut ATQR2 is comparable to Eaton Cooper Bussmann FNQ-R-2.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATQR2 |
| Manufacturer Alternate Number | D214731 |
| UPC | 782001906443 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Frequency | 50/60Hz |
| Rated Current | 2A |
| RoHS Compliant | Yes |
| Fuse Class | CC |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Time Delay |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
