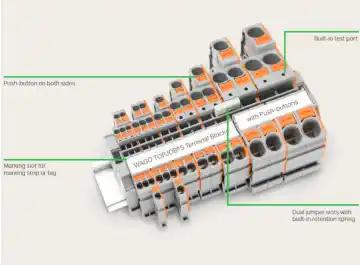

Changing the industry with the mere push of a button, WAGO now offers button-actuated function terminal blocks that are modeled after the successful push-button-equipped TOPJOB® S Rail-Mount Terminal Blocks. The new function blocks complement WAGO's existing through terminal blocks with push-buttons, allowing users to benefit from push-button convenience across the entire terminal block assembly. The function terminal block, which can be used as a fuse terminal block, disconnect terminal block or through terminal block, is incredibly compact despite the pivoting fuse holder and test ports on both sides. The new disconnect/test and fuse terminal blocks for 2.5mm² (14AWG) conductors feature WAGO's industry-proven Push-in CAGE CLAMP® connection technology and provide simple, intuitive operation.

Push-button operation has been part of the WAGO product offering since the founding of the company. Primarily used in PCB and chassis mount terminal blocks, it is now offered in our TOPJOB® S rail

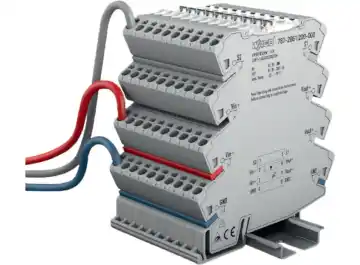

1-channel electronic circuit breakers with marine approval protect 24 V circuits.

The 1-channel electronic circuit breakers provide reliable overload protection for electrical and electronic components such as control technology, measurement technology and sensors/actuators. Additionally, in the event of a short circuit, all seven available circuit breakers guarantee fast, reliable tripping. Thanks to a small installation width of just 6 mm, the circuit breakers are suitable for small electrical distribution boards on ships, where they require no maintenance at all.

The integrated digital input is used for resetting and switching, for example from the bridge, and the digital output reports the current status in real-time. In addition to notification of breaker trips due to overcurrent or short circuit, other messages can be set up, such as an early warning at 70%, 80% or 90% capacity. This increases the timeframe for a response and ensures even greater reliability.

The fact that they have

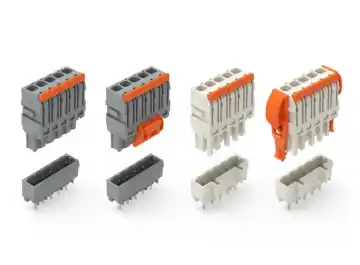

The powerful MCS MIDI allows convenient, tool-free wiring of conductors with cross-sections up to 2.5 mm².

The MCS MIDI 1-conductor female connector will soon be available with a lever for conductor cross-sections from 0.14 to 2.5 mm² (26 to 12 = AWG) and 5 mm pin spacing. It boasts an ideal combination of high performance, compact design and convenient lever operation, providing the missing link in the connector family of WAGO's MULTI CONNECTION SYSTEM (MCS). Lever operation makes manual wiring easy. The lever requires no tools and allows intuitive operation.

Thanks to the Push-in CAGE CLAMP®, solid and fine-stranded conductors with ferrules can be connected by simply pushing them into the unit. The connector has a current carrying capacity of up to 16 A and an overall height of just 11.5 mm. It can be used in drive controllers, converters and power supplies, for example.

This pluggable PCB connector is available in two versions: MCS MIDI Classic and MCS MIDI with 100% protection against

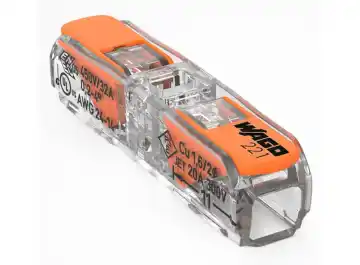

WAGO's 221 Series Inline Splicing Connectors offer a slim design and tool-free conductor connection.

Truly a standard-setting solution for all conductor types from 0.2 to 4 mm² (stranded only up to 2.5 mm²), the new 221 Series Inline Splicing Connector with levers represents superior safety, simplicity and ease of install. WAGO's Inline Splicing Connector condenses the industry-leading 221 Series Splicing Connectors' advantages into a slim design. Offering unsurpassed simplicity, speed and reliability, the 221 Series levers provide tool-free universal conductor connection and a transparent housing that allows users to confirm conductor contact at a glance. Where multiple poles are required, optional adapters provide completely modular mounting.

Users get the flexibility of having five fixed-position poles in one adapter - whether it's with or without strain relief, on DIN-rails with a snap-in mounting foot, for screw mounting, adhesive mounting, tie-on mounting or suspended mounting.
