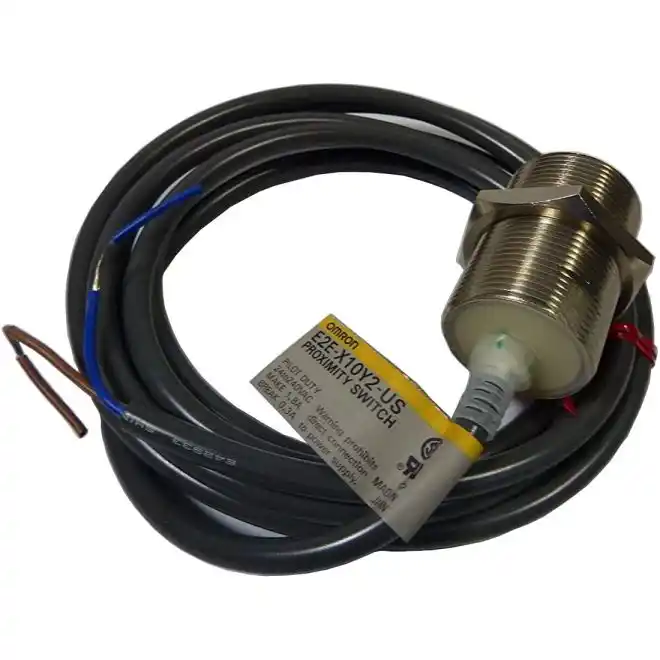

Omron E2E-X10Y2-US M30 Proximity Sensor

SKU#:

33315

Omron E2E family offers the most complete line of proximity sensors. Designed to meet world wide standards like CENELEC, IEC, UL and more. The E2E-X10Y2-US proximity sensor can be used in standard and demanding applications. Your search for proximity sensors starts with the world-leading performance and quality of the E2E. Omron E2E-X10Y2-US is comparable to Omron E2E-X10Y2-US-N.
Specifications
Brand Omron Automation
Manufacturer Part Number E2E-X10Y2-US
Manufacturer Alternate Number E2EX10Y2US
UPC 4547648404228
Size M30
Body Type Threaded Cylindrical
Type Short Body
Supply Voltage Range 24VAC - 240VAC
Sensing Range 10mm
Shielded Yes
Electrical Connection PVC Cable
Cable Length 2m
Output Type 2 Wire AC
Operation Normally Close
Threaded Length 43mm
Overall Length 60mm
Mounting Type Bracket with 30mm mounting hole or M30x1.5 threaded hole
IP Rating IP67
Height (mm) 42mm
Width (mm) 42mm
Depth (Length) (mm) 48mm
Weight (lbs) 0.39
UOM ea
