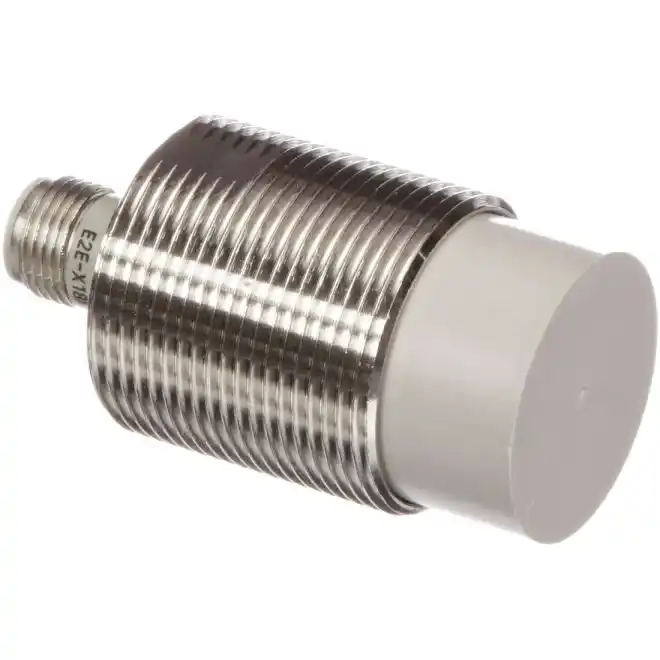

Omron E2E-X18MY1-M1 M30 Proximity Sensor
SKU#:
132778
Omron E2E family offers the most complete line of proximity sensors. Designed to meet world wide standards like CENELEC, IEC, UL and more. The E2E-X18MY1-M1 proximity sensor can be used in standard and demanding applications. Your search for proximity sensors starts with the world-leading performance and quality of the E2E.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2E-X18MY1-M1 |
| Manufacturer Alternate Number | E2EX18MY1M1 |
| UPC | 4547648405362 |
| Size | M30 |
| Body Type | Threaded Cylindrical |
| Type | Short Body |
| Supply Voltage Range | 24VAC - 240VAC |
| Sensing Range | 18mm |
| Shielded | No |
| Electrical Connection | M12 Connector (AC 4-pin Dual Keyway) |
| Output Type | 2 Wire AC |
| Operation | Normally Open |
| Threaded Length | 30mm |
| Overall Length | 58mm |
| Mounting Type | Bracket with 30mm mounting hole or M30x1.5 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 42mm |
| Width (mm) | 42mm |
| Depth (Length) (mm) | 58mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
