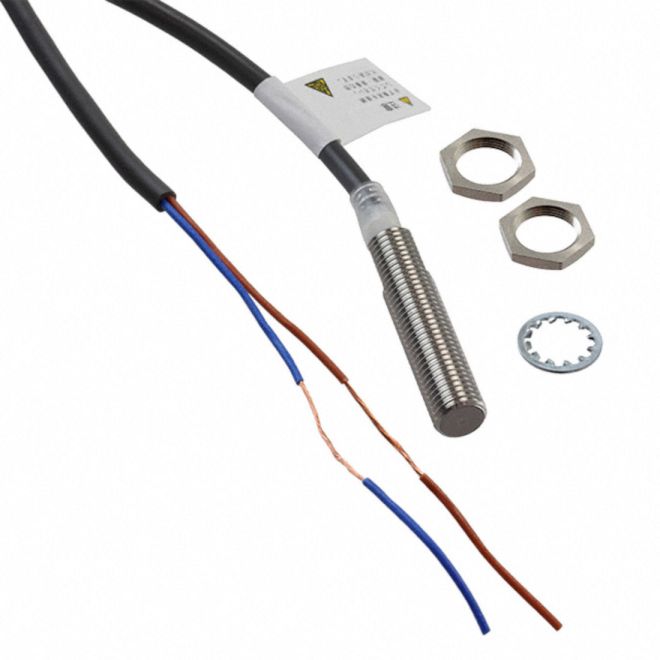

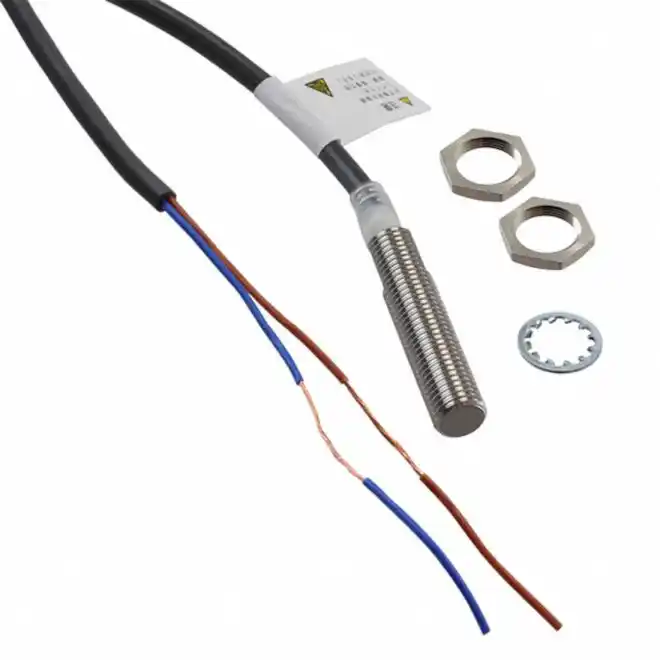

Omron E2E-X1R5Y2 M8 Proximity Sensor
SKU#:
4325
Omron E2E family offers the most complete line of proximity sensors. Designed to meet world wide standards like CENELEC, IEC, UL and more. The E2E-X1R5Y2 proximity sensor can be used in standard and demanding applications. Your search for proximity sensors starts with the world-leading performance and quality of the E2E.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2E-X1R5Y2 |
| Manufacturer Alternate Number | E2EX1R5Y2 |
| UPC | 4547648404143 |
| Size | M8 |
| Body Type | Threaded Cylindrical |
| Type | Short Body |
| Supply Voltage Range | 24VAC - 240VAC |
| Sensing Range | 1.5mm |
| Shielded | Yes |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | 2 Wire AC |
| Operation | Normally Close |
| Threaded Length | 36mm |
| Overall Length | 47mm |
| Mounting Type | Bracket with 8mm mounting hole or M8x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 40mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
