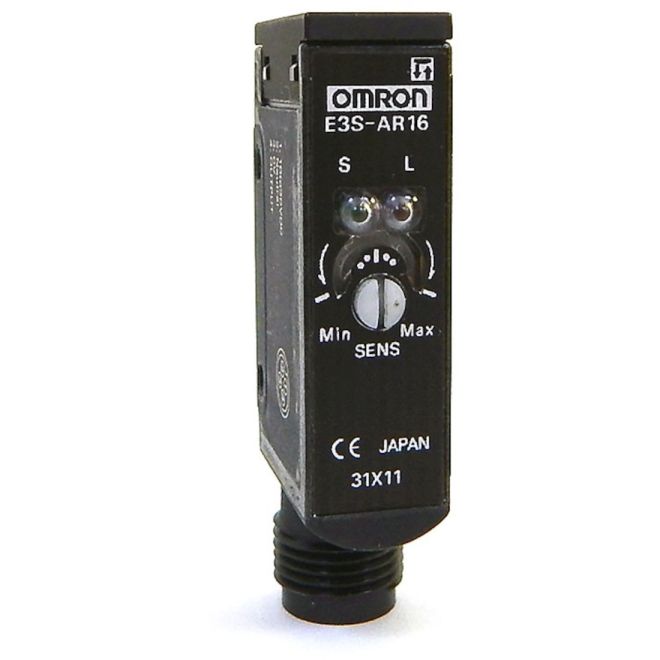

Omron E3S-AR16 Retro-Reflective Photo Eyes
SKU#:
4119
With self-diagnostic function, Omron E3S-A checks changes in environmental conditions (especially a change in the ambient temperature) and self-diagnoses the resistance against the changes. The OFF-delay time adjuster of E3S-AR16 retroreflective and the 20cm diffuse reflective sensor is used as a turbo switch. When the adjuster is pressed, it functions as a turbo switch to automatically increase the power of the light source to create a brighter light spot.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3S-AR16 |
| Manufacturer Alternate Number | E3SAR16 |
| UPC | 4536853282301 |
| Body Type | Rectangular |
| Type | Horizontal |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | PBT |
| Sensing Method | Retro-Reflective |
| Sensing Range | 100mm - 2m |
| Output Type | NPN |
| Light Source | Red LED |
| Electrical Connection | M12 Connector |
| IP Rating | IP67 |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 12.4mm |
| Depth (Length) (mm) | 52.9mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
