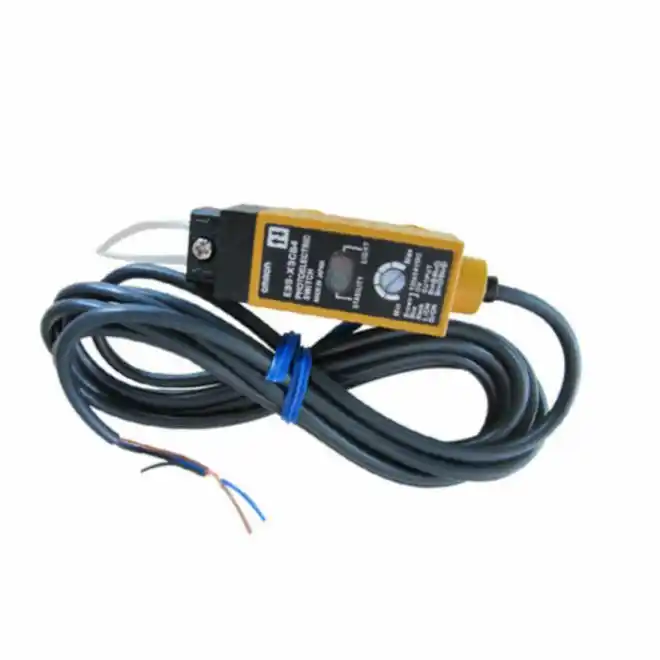

Omron E3S-X3CB4 PNP Output Photoelectric Sensors
SKU#:
4220
Omron E3S-X is a fiber optics amplifier unit with a rugged metal housing. Wide variety of fiber units allow detection in a limited space. Easy adjustment with LIGHT and STABILITY indicators. High-speed response time of 1ms essential for sensing minute objects is provided. Mutual interference protective circuit allows side-by-side mounting of two E3S-X3CB4 fiber units.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3S-X3CB4 |
| Manufacturer Alternate Number | E3SX3CB4 |
| UPC | 4536853289706 |
| Body Type | Rectangular |
| Type | Horizontal |
| Operation | Wire Selectable |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | Zinc Die-Cast |
| Sensing Method | Fiber Optic |
| Output Type | PNP |
| Light Source | Infrared LED |
| Electrical Connection | Pre-Wired |
| Cable Length | 2m |
| IP Rating | IP66 |
| Height (mm) | 20.4mm |
| Width (mm) | 23mm |
| Depth (Length) (mm) | 71mm |
| Weight (lbs) | 0.40 |
| UOM | ea |
