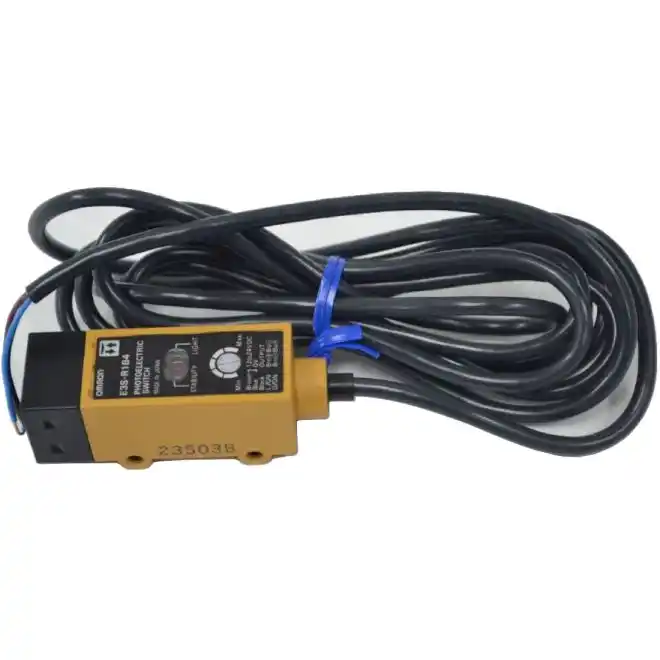

Omron E3S-R1B4 Transparent Object Detection Sensor
SKU#:
4190
Omron E3S-R senses glass wafers and LCD glass circuit boards. The permeation rate of any type of object sensed by the E3S-R1B4 must be as low as possible for the stable sensing of the object. Before using the E3S-R to sense objects, use samples of the objects to check if the E3S-R can sense the samples easily.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3S-R1B4 |
| Manufacturer Alternate Number | E3SR1B4 |
| UPC | 4536853287894 |
| Body Type | Rectangular |
| Type | Horizontal |
| Operation | Wire Selectable |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | Zinc Die-Cast |
| Sensing Method | Retro-Reflective |
| Sensing Range | 1m |
| Output Type | PNP |
| Light Source | Infrared LED |
| Electrical Connection | Pre-Wired |
| IP Rating | IP67 |
| Height (mm) | 20mm (0.79") |
| Width (mm) | 23mm |
| Depth (Length) (mm) | 66.6mm |
| Weight (lbs) | 0.36 |
| UOM | ea |
