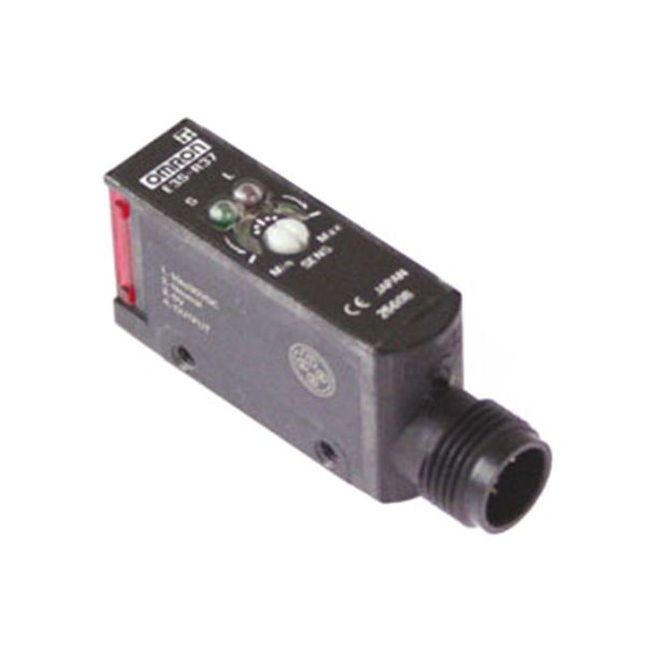

Omron E3S-R37 Transparent Object Detection Sensor
SKU#:
4201
Omron E3S-R senses glass wafers and LCD glass circuit boards. The permeation rate of any type of object sensed by the E3S-R37 must be as low as possible for the stable sensing of the object. Before using the E3S-R to sense objects, use samples of the objects to check if the E3S-R can sense the samples easily. Omron E3S-R37 is comparable to Omron E3Z-B86.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3S-R37 |
| Manufacturer Alternate Number | E3SR37 |
| UPC | 4536853284725 |
| Body Type | Rectangular |
| Type | Horizontal |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | PBT |
| Sensing Method | Retro-Reflective |
| Sensing Range | 100mm - 300mm |
| Output Type | PNP |
| Light Source | Infrared LED |
| Electrical Connection | Plug-in Connector |
| IP Rating | IP67 |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 12.4mm |
| Depth (Length) (mm) | 50mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
