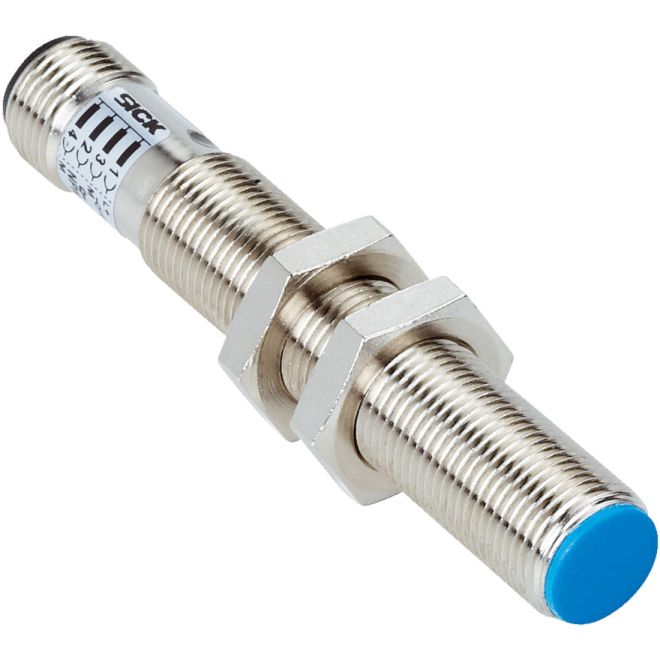

SICK IM12-02BNP-ZC1 7902924 M12 Inductive Sensors
SKU#:
135506
SICK's inductive sensors offer precise detection, less downtime, and a long service life. The IM12-02BNP-ZC1 7902924 DC inductive sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturingprocess. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values - for anynumber of production runs. IME sensors are completely encapsulated with hot melt technology, which increases these sensors' lifeunder shock and vibration. The customer benefits from high positioning accuracy in the machine and long-term sensor reliability.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 7902924 |
| Manufacturer Alternate Number | IM12-02BNP-ZC1 |
| Size | M12 |
| Body Type | Threaded Cylindrical |
| Type | Economical |
| Supply Voltage Range | 10VDC - 30VDC |
| Sensing Range | 2mm |
| Shielded | Yes |
| Electrical Connection | Male Connector M12, 4-Pin |
| Output Type | NPN |
| Output Function | Complementary |
| Operation | Inductive Proximity |
| Threaded Length | 39mm |
| Overall Length | 65mm |
| Mounting Type | Flush |
| IP Rating | IP68 |
| Height (mm) | 12mm (0.47") |
| Width (mm) | 12mm |
| Depth (Length) (mm) | 65mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
