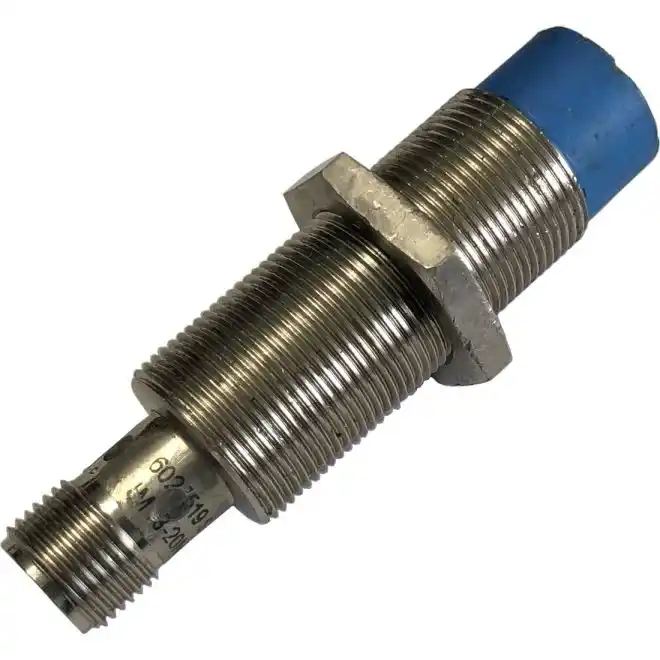

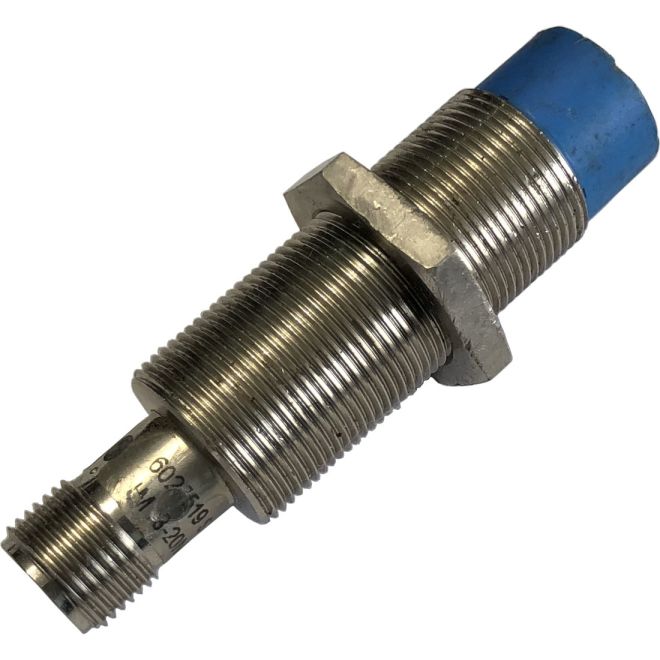

SICK IM18-20NPS-ZC1 6027519 M18 Inductive Sensors
SKU#:
356034
For that little bit extra, the IML IM18-20NPS-ZC1 6027519 inductive sensors with their threefold sensing range are ideal. Thanks to innovative SICK-ASIC technology, they offer greatly extended sensing ranges up to 40 mm, providing even more capacity in reserve. Due to the threefold sensing range, objects can be detected from great distances, which minimizes the risk of damage to the sensor or the part to be detected. They can be used like conventional proximity sensors over a operating temperature of -25 °C to +70 °C, for performance without restrictions.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6027519 |
| Manufacturer Alternate Number | IM18-20NPS-ZC1 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Triple Sensing Range |
| Supply Voltage Range | 10VDC - 30VDC |
| Sensing Range | 20mm |
| Shielded | No |
| Electrical Connection | Male Connector M12, 4-Pin |
| Output Type | PNP |
| Output Function | Normally Open |
| Operation | Inductive Proximity |
| Threaded Length | 32mm |
| Overall Length | 63.5mm |
| Mounting Type | Non-Flush |
| IP Rating | IP67 |
| Height (mm) | 18mm (0.71") |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 63.5mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
