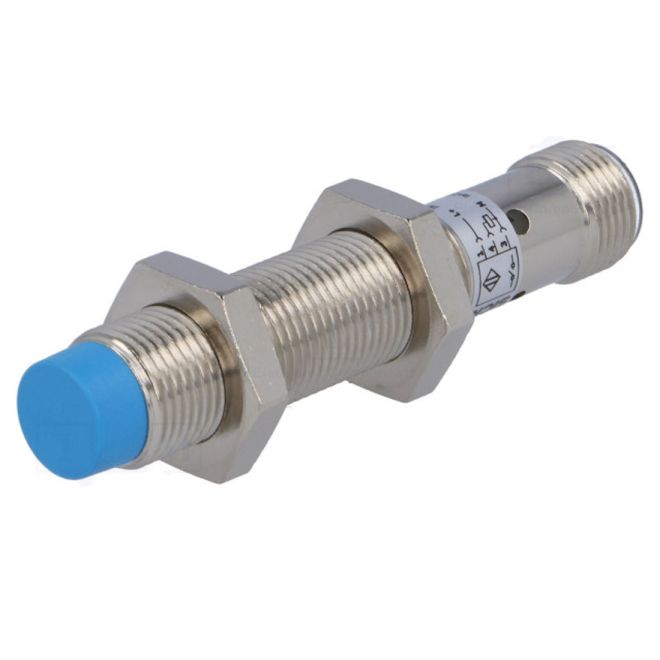

SICK IM12-04NPS-ZC1 6011983 M12 Inductive Sensors

SKU#:

132419

SICK's inductive sensors offer precise detection, less downtime, and a long service life. The IM12-04NPS-ZC1 6011983 DC inductive sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturingprocess. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values - for anynumber of production runs. IME sensors are completely encapsulated with hot melt technology, which increases these sensors' lifeunder shock and vibration. The customer benefits from high positioning accuracy in the machine and long-term sensor reliability. SICK IM12-04NPS-ZC1 is comparable to Omron E2E-X5MF1-M1-N, Automation Direct AM1-AP-2H, Pepperl & Fuchs NBN4-12GM50-E2-V1, Siemens 3RG40 22-3AG01, TURCK Ni 4-M12-AP6X-H1141, Allen Bradley 872C-DH4NP12-D4, Balluff BES-516-356-E5-Y-S4, Cutler-Hammer E57SAL12T111ED, IFM Efector IFK3004BPOG/US100DPS.
Specifications
Brand SICK
Manufacturer Part Number 6011983
Manufacturer Alternate Number IM12-04NPS-ZC1
Size M12
Body Type Threaded Cylindrical
Type Economical
Supply Voltage Range 10VDC - 30VDC
Sensing Range 4mm
Shielded No
Electrical Connection Male Connector M12, 4-Pin
Output Type PNP
Output Function Normally Open
Operation Inductive Proximity
Threaded Length 38mm
Overall Length 65mm
Mounting Type Non-Flush
IP Rating IP67
Height (mm) 12mm (0.47")
Width (mm) 12mm
Depth (Length) (mm) 65mm
Weight (lbs) 0.07
UOM ea
