SICK IM30-10BUS-ZU0 7902126 M30 Inductive Sensors

SKU#:

135469

SICK's inductive sensors offer precise detection, less downtime, and a long service life. The IM08-03BPS-ZT1 7902126 AC/DC inductive sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturingprocess. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values - for anynumber of production runs. IME sensors are completely encapsulated with hot melt technology, which increases these sensors' lifeunder shock and vibration. The customer benefits from high positioning accuracy in the machine and long-term sensor reliability. SICK IM30-10BUS-ZU0 is comparable to Omron E2E-X10Y1-US, Automation Direct VT1-A0-1B, Pepperl & Fuchs VT1-A0-1B, Siemens 3RG40 14-0KB00, TURCK Bi 10-M30T-AZ3X, Allen Bradley 872C-A10N30-A2, Baumer Electric IFRM 30A1601/L, Cutler-Hammer E57SAL30A2, IFM Efector IIA2010AB0A.
Specifications
Brand SICK
Manufacturer Part Number 7902126
Manufacturer Alternate Number IM30-10BUS-ZU0
Size M30
Body Type Threaded Cylindrical
Type Economical
Supply Voltage Range 20VAC/20VDC - 250VAC/250VDC
Sensing Range 10mm
Shielded Yes
Electrical Connection Cable, 2-Wire, 2m
Cable Length 2m
Output Function Normally Open
Operation Inductive Proximity

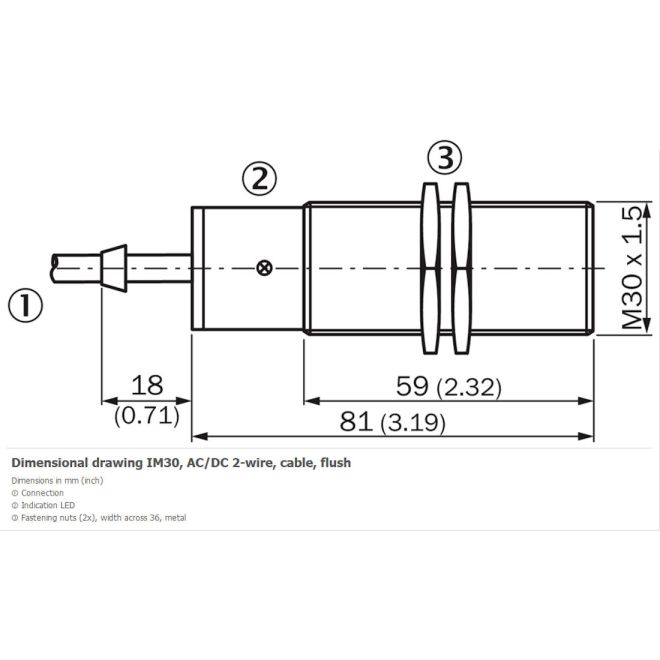

Threaded Length 59mm
Overall Length 81mm
Mounting Type Flush
IP Rating IP67
Height (mm) 30mm (1.18")
Width (mm) 30mm
Depth (Length) (mm) 81mm
Weight (lbs) 0.54
UOM ea
