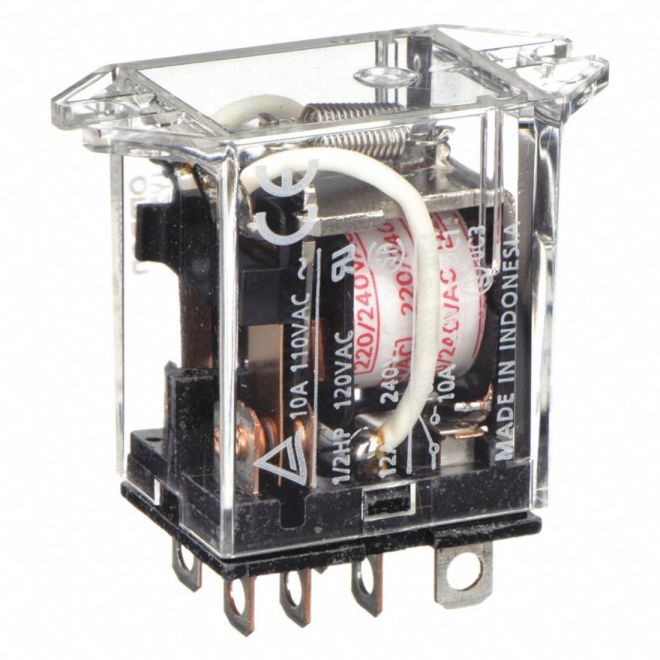

Omron LY2F-AC220/240 2-Pole DPDT Bi-Power Relay
SKU#:
2222
Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY2F-AC220/240 is equipped with an arc barrier for arc interruption.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | LY2F AC220/240 |
| Manufacturer Alternate Number | LY2FAC220240 |
| UPC | 4536853611668 |
| Coil Voltage | 220VAC - 240VAC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Chassis |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 110 VAC, 5A at 24 VDC |
| Rated Load (Resistive) | 10 A at 110 VAC, 10 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,100 VA, 240 W |
| Max. Switching Power (Inductive) | 825 VA, 120 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +55°C |
| Power Consumption | Approx. 1.00 VA to 1.20 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 500,000 |
| Height (mm) | 41.9mm |
| Width (mm) | 22.5mm |
| Depth (Length) (mm) | 44mmm |
| Weight (lbs) | 0.09 |
| UOM | ea |
