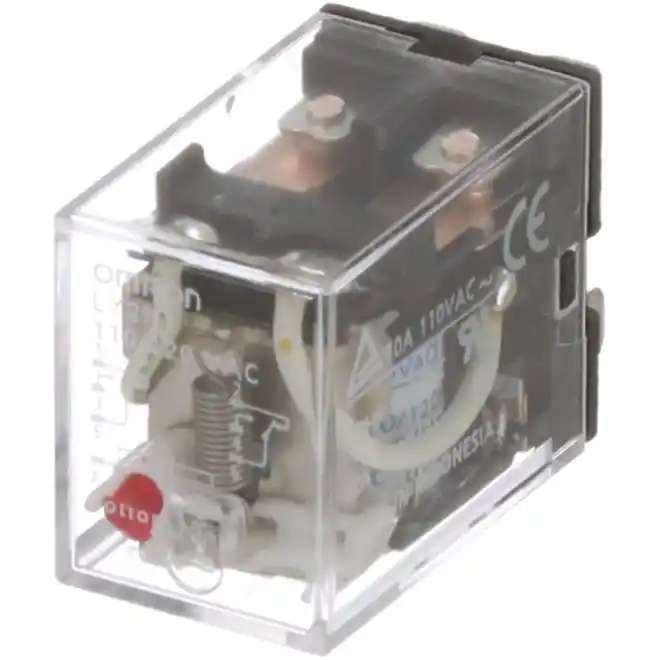

Omron LY2N-AC110/120 2-Pole DPDT Bi-Power Relay
SKU#:
2252
Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY2N-AC110/120 is equipped with an arc barrier for arc interruption. Omron LY2N-AC110/120 is comparable to IDEC RH2B-UL-AC120, Finder 56.32.8.120.0050.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | LY2N AC110/120 |
| Manufacturer Alternate Number | LY2NAC110120 |
| UPC | 4536853612405 |
| Coil Voltage | 100VAC - 120VAC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 110 VAC, 5A at 24 VDC |
| Rated Load (Resistive) | 10 A at 110 VAC, 10 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,100 VA, 240 W |
| Max. Switching Power (Inductive) | 825 VA, 120 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +55°C |
| Power Consumption | Approx. 1.00 VA to 1.20 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 500,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 21.5mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
