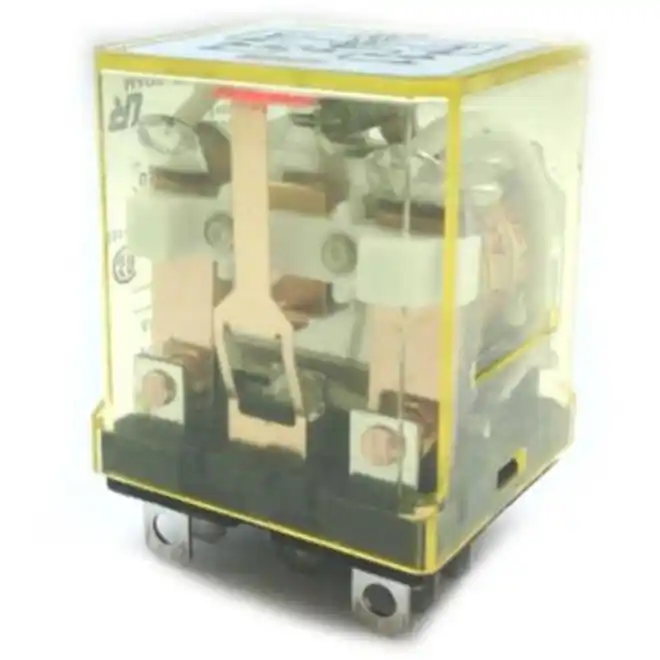

IDEC RH2LB-UAC120V Relays Plug-In DPDT 10A 120VAC
SKU#:
30986
IDEC RH2LB-UAC120V RH2L series midget power latch relays have a self-holding function by residual magnetism generated by a special magnetic material. The large 10A contact capacity equivalent to the RH and RR series is provided in a miniature relay package as small as the IDEC's RH3 type. With a mechanical operation indicator to show the set/reset status. Power saving operation by pulse inputs eliminates the need of continuous control voltage. Available with plug-in or PC board mount terminals. All basic types are recognized by UL and certified by CSA.
| Brand | IDEC |
|---|---|
| Manufacturer Part Number | RH2LB-UAC120V |
| Manufacturer Alternate Number | RH2LBUAC120V |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Blade |
| Mounting Type | Base/Socket |
| Max. Switching Current | 10 A |
| Rated Current | 10A |
| Height (mm) | 42mm |
| Width (mm) | 31mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
