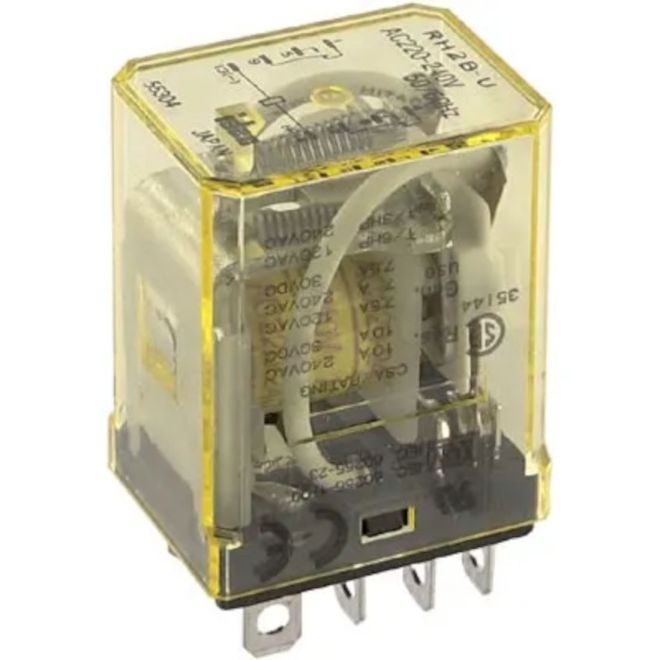

IDEC RH2B-UAC220-240V Relays Plug-In DPDT 10A 220-240VAC
SKU#:
30977
Featuring the same contact ratings as the larger RR series, IDEC RH2B-UAC220-240V uses silver cadmium oxide contacts to help reduce voltage arcing. Available in 1 to 4 poles, with either .187 blade plug-in or PCB terminals, the RH series is known for going the distance. Options include manual check buttons, LED indicators, and top flange covers for direct surface mounting. All models carry worldwide approvals including UL, CSA, TUV and CE. Using a standard terminal arrangement, the RH series will plug into many competitors' sockets. In fact, since we private label sockets for so many companies, there is a good chance that the socket you are using was designed specifically for RH series relays.
| Brand | IDEC |
|---|---|
| Manufacturer Part Number | RH2B-UAC220-240V |
| Manufacturer Alternate Number | RH2BUAC220240V |
| Coil Voltage | 220VAC - 240VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Blade |
| Mounting Type | Base/Socket |
| Max. Switching Current | 10 A |
| Rated Current | 10A |
| Height (mm) | 42mm |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
