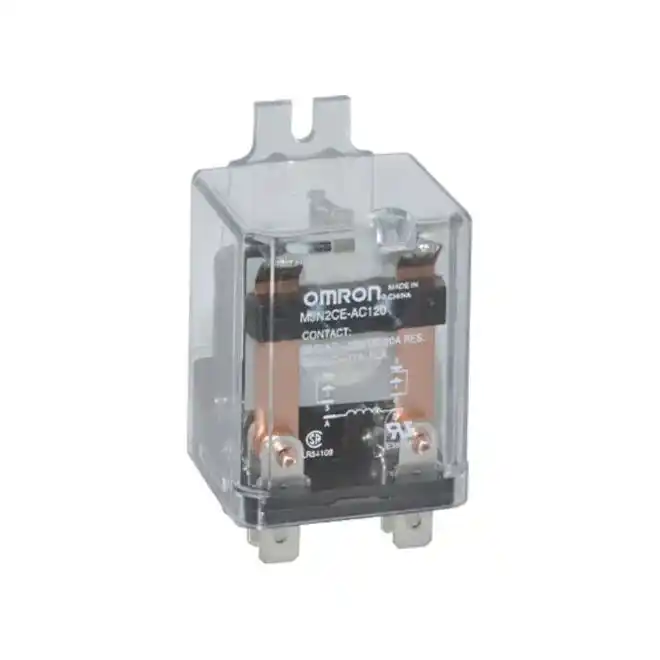

Omron MJN2CE-AC120 DPDT 20A 120VAC Flange Relay
SKU#:
267367
Omron MJN series is a general purpose relay with plug-in termination, available in SPDT, DPDT or 3PDT models. Rugged power driver offers superior 3/16" through-air and 3/8 over-surface spacing. Interlocked frame and contact block prevent contact misalignment during plug-in. Available with dust covers, indicator lamps and push-to-operate buttons. MJN2C-E-AC120 is UL and CSA recognized as motor controllers up to 600 VAC. Recognized for 1/2 hp motor control applications at 240/480/600 VAC (1/3 hp at 120 VAC).
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MJN2CE AC120 |
| Manufacturer Alternate Number | MJN2CEAC120 |
| Coil Voltage | 120VAC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Quick Connect |
| Mounting Type | Chassis |
| Max. Switching Voltage | 600 VAC, 28 VDC |
| Max. Switching Current | 20 A |
| Rated Current | 20A at 120 VAC, 20A at 28 VDC |
| Operating Temperature | -45°C - +60°C |
| Power Consumption | Approx. 1.7 VA to 2.0 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 73.7mm |
| Width (mm) | 38.7mm |
| Depth (Length) (mm) | 35.6mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
