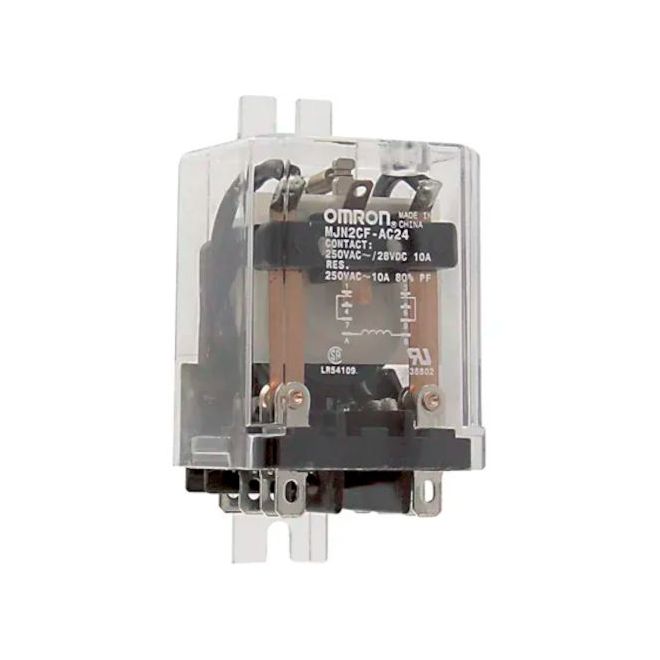

Omron MJN2CF-AC24 DPDT 10A 24VAC Flange Relay
SKU#:
280642
Omron MJN series is a general purpose relay with plug-in termination, available in SPDT, DPDT or 3PDT models. Rugged power driver offers superior 3/16" through-air and 3/8 over-surface spacing. Interlocked frame and contact block prevent contact misalignment during plug-in. Available with dust covers, indicator lamps and push-to-operate buttons. MJN2CF-AC24 is UL and CSA recognized as motor controllers up to 600 VAC. Recognized for 1/2 hp motor control applications at 240/480/600 VAC (1/3 hp at 120 VAC). Omron MJN2CF-AC24 is comparable to Schneider Magnecraft 788XAXC1-24A, A283XAXC1-12A, IDEC RR1BA-US-AC24V, TE Connectivity Tyco Schrack Potter & Brumfield KUP5A55 (or F) -24.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MJN2CF AC24 |
| Manufacturer Alternate Number | MJN2CFAC24 |
| UPC | 094701558731 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Quick Connect |
| Mounting Type | Chassis |
| Max. Switching Voltage | 600 VAC, 28 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 10 A at 120 VAC, 10 A at 28 VDC |
| Operating Temperature | -45°C - +60°C |
| Power Consumption | Approx. 1.7 VA to 2.0 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 73.7mm |
| Width (mm) | 38.7mm |
| Depth (Length) (mm) | 35.6mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
