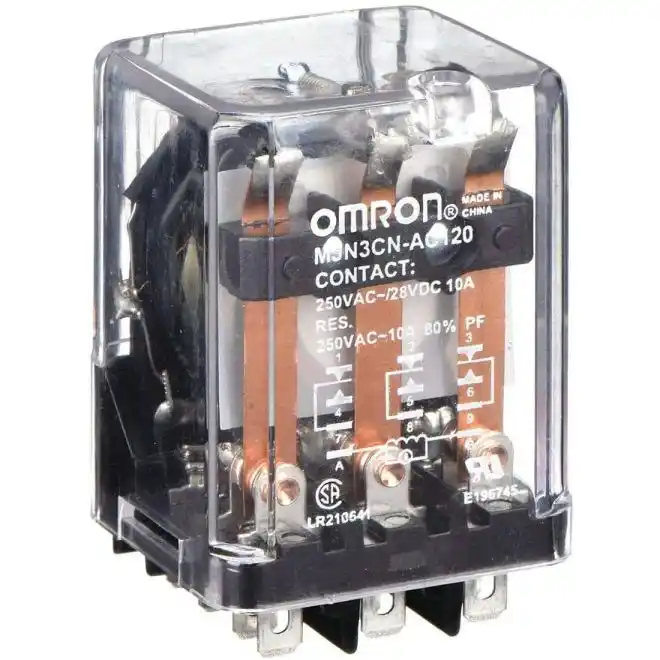

Omron MJN3C-N-AC120 3PDT 10A 120VAC Relay
SKU#:
265376
Omron MJN series is a general purpose relay with plug-in termination, available in SPDT, DPDT or 3PDT models. Rugged power driver offers superior 3/16" through-air and 3/8 over-surface spacing. Interlocked frame and contact block prevent contact misalignment during plug-in. Available with dust covers, indicator lamps and push-to-operate buttons. MJN3CN-AC120 is UL and CSA recognized as motor controllers up to 600 VAC. Recognized for 1/2 hp motor control applications at 240/480/600 VAC (1/3 hp at 120 VAC). Omron MJN3CN-AC120 is comparable to TE Connectivity Potter & Brumfield KUP-14A35-120.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MJN3C-N AC120 |
| Manufacturer Alternate Number | MJN3CNAC120 |
| UPC | 094701526730 |
| Coil Voltage | 120VAC |
| Contact Arrangement | 3 Form C (3PDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 600 VAC, 28 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 10 A at 120 VAC, 10 A at 28 VDC |
| Operating Temperature | -45°C - +45°C |
| Power Consumption | Approx. 1.7 VA to 2.0 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 55.5mm |
| Width (mm) | 38.7mm |
| Depth (Length) (mm) | 35.6mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
