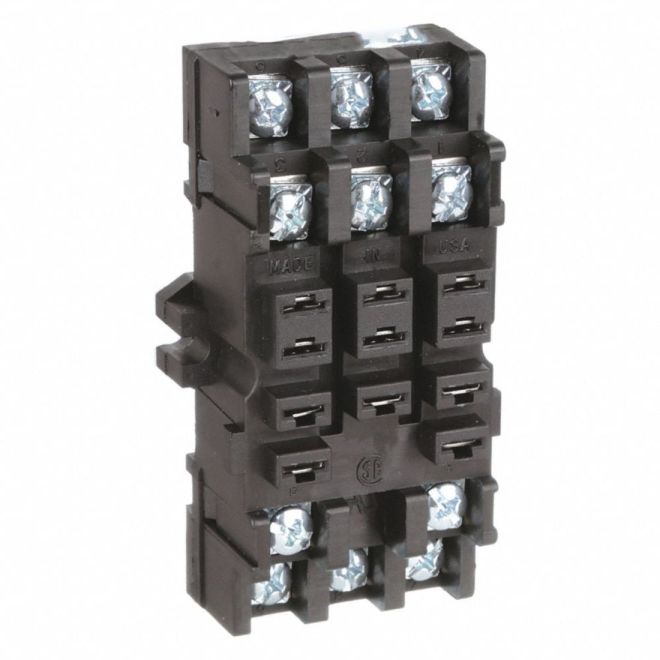

Omron PTF11PC Socket for 10A Non-Flange MJN Relay
SKU#:
265410
Omron MJN series is a general purpose relay with plug-in termination, available in SPDT, DPDT or 3PDT models. Rugged power driver offers superior 3/16" through-air and 3/8 over-surface spacing. Interlocked frame and contact block prevent contact misalignment during plug-in. Available with dust covers, indicator lamps and push-to-operate buttons with PTF11PC sockets. MJN is UL and CSA recognized as motor controllers up to 600 VAC. Recognized for 1/2 hp motor control applications at 240/480/600 VAC (1/3 hp at 120 VAC). Omron PTF11PC is comparable to IDEC SR3B-05.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | PTF11PC |
| Contact Arrangement | DPDT (2 Form C) |
| Number of Positions | 11 |
| Electrical Connection | 11 Positions Blade |
| Terminal Type | Screw Terminal |
| Mounting Type | DIN Rail |
| Height (mm) | 23.2mm |
| Width (mm) | 76.2mm |
| Depth (Length) (mm) | 39.4mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
