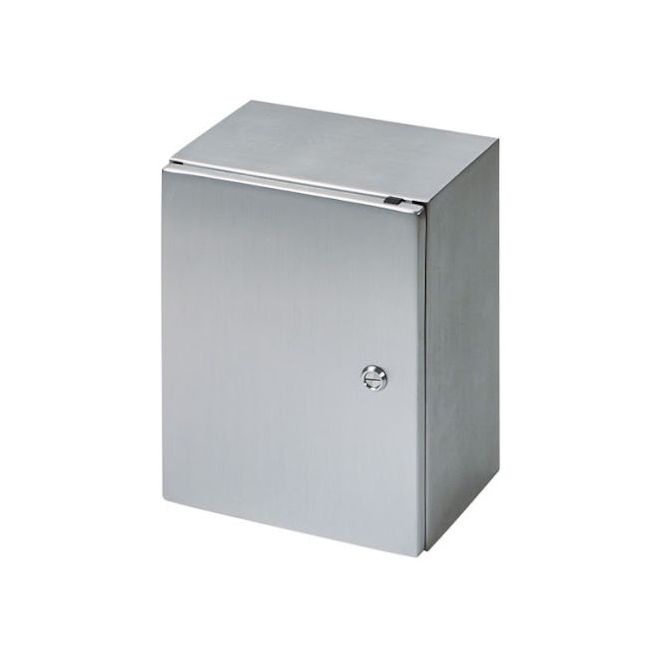

RITTAL 8017608 WM161208N4 16" 12" 8" Stainless Box
SKU#:
368101
Rittal WM stainless steel enclosures can be used for virtually any application. NEMA 4X protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM161208N4 8017608 WM enclosures are readily available in all of the most popular sizes, protection categories and configurations - including universal disconnect cutout - and a full range of accessories. These new highly secure latching enclosures are available in both 304 and 316 stainless steel. Rittal WM161208N4 is comparable to Hoffman Concept or Continuous Hinge CSD16128SS, Saginaw SCE Enviroline SCE-16EL1208SSLP.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017608 |
| Manufacturer Alternate Number | WM161208N4 |
| UPC | 639889831858 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Housing with Door, Wall Mounting Blind-Nuts |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Mounting Plate | Carbon Steel Zinc-Plated 375mm (15") x 254mm (10") |
| Latching System | Slotted Head Insert Quarter Turn Latch |
| Door Cover Style | Left Hand Hinged |
| Number of Doors | 1 |
| Height (mm) | 400mm (16") |
| Width (mm) | 300mm (12") |
| Depth (Length) (mm) | 210mm (8.3") |
| Weight (lbs) | 22.55 |
| UOM | ea |
