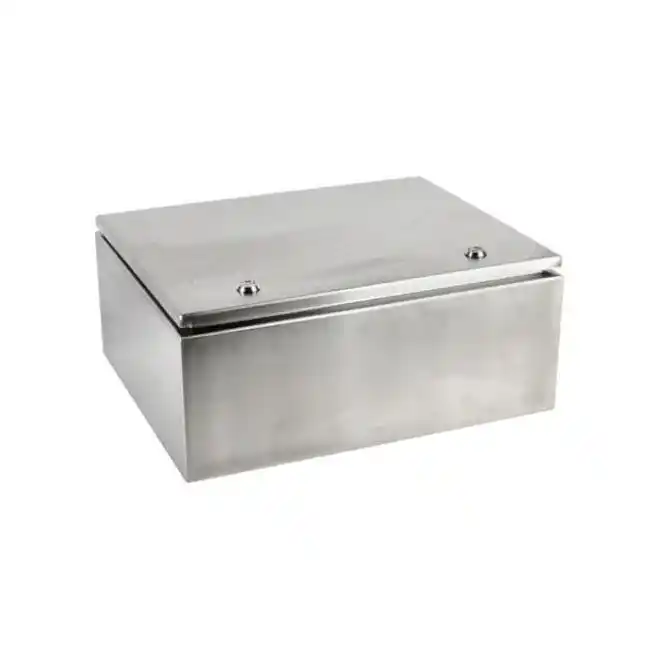

RITTAL 8017628 WM201608N6 20" 16" 8" Stainless Box
SKU#:
368113
Rittal WM stainless steel enclosures can be used for virtually any application. NEMA 4X protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM201608N6 8017628 WM enclosures are readily available in all of the most popular sizes, protection categories and configurations - including universal disconnect cutout - and a full range of accessories. These new highly secure latching enclosures are available in both 304 and 316 stainless steel.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017628 |
| Manufacturer Alternate Number | WM201608N6 |
| UPC | 639889832046 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Housing with Door, Wall Mounting Blind-Nuts |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Mounting Plate | Carbon Steel Zinc-Plated 475mm (19") x 354mm (14") |
| Latching System | Slotted Head Insert Quarter Turn Latch |
| Door Cover Style | Left Hand Hinged |
| Number of Doors | 1 |
| Height (mm) | 500mm (20") |
| Width (mm) | 400mm (16") |
| Depth (Length) (mm) | 210mm (8.3") |
| Weight (lbs) | 33.07 |
| UOM | ea |
