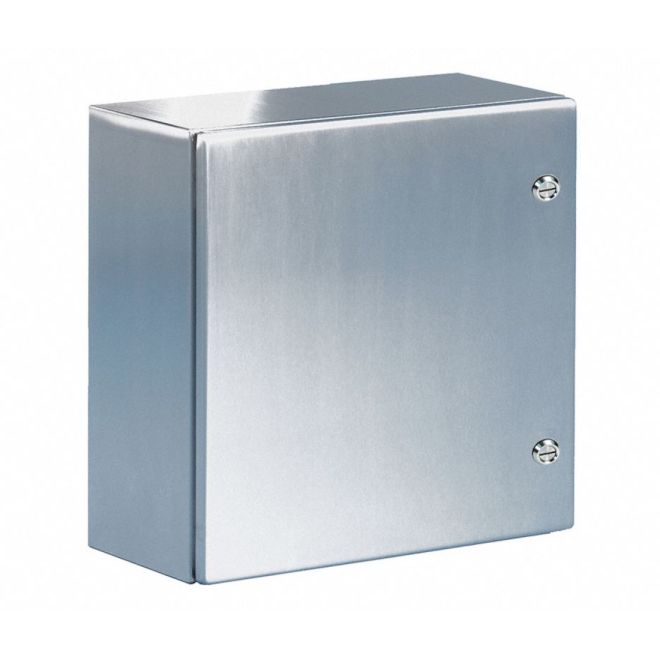

RITTAL 8018474 WM242412N4 24" 24" 12" NEMA 4X Box
SKU#:
368137
Rittal WM stainless steel enclosures can be used for virtually any application. NEMA 4X protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM242412N4 8018474 WM enclosures are readily available in all of the most popular sizes, protection categories and configurations - including universal disconnect cutout - and a full range of accessories. These new highly secure latching enclosures are available in both 304 and 316 stainless steel. Rittal WM242412N4 is comparable to Hoffman Concept or Continuous Hinge CSD242412SS, Saginaw SCE Enviroline SCE-24EL2412SSLP.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018474 |
| Manufacturer Alternate Number | WM242412N4 |
| UPC | 639889834965 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Housing with Door, Wall Mounting Blind-Nuts |
| Material Thickness | Housing: 1.5mm (0.06"), Door: 2mm (0.08"), Mounting Plate: 2.5mm (0.1") |
| Mounting Plate | Zinc-Plated 570mm (22") x 549mm (22") |
| Latching System | Slotted Head Insert Quarter Turn Latch |
| Door Cover Style | Left Hand Hinged |
| Number of Doors | 1 |
| Height (mm) | 600mm (24") |
| Width (mm) | 600mm (24") |
| Depth (Length) (mm) | 300mm (12") |
| Weight (lbs) | 61.73 |
| UOM | ea |
