RITTAL 8017602 WM363612N4 36" 36" 12" NEMA 4X Box
SKU#:
368179

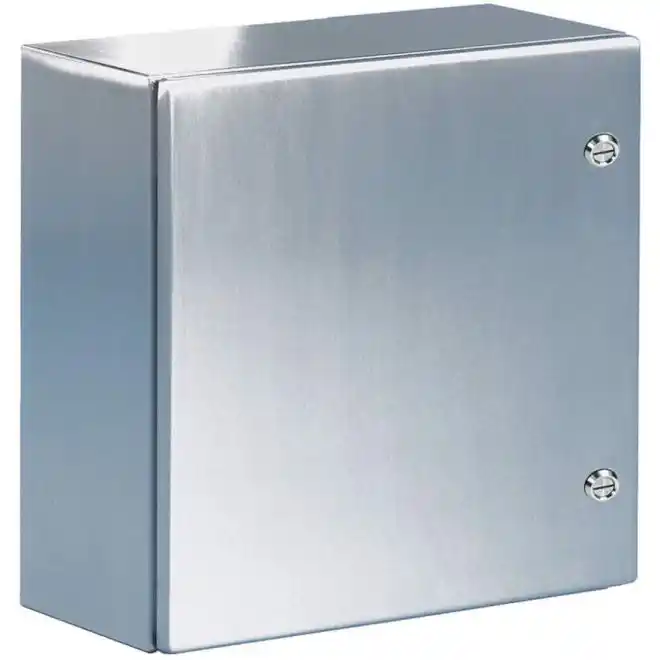

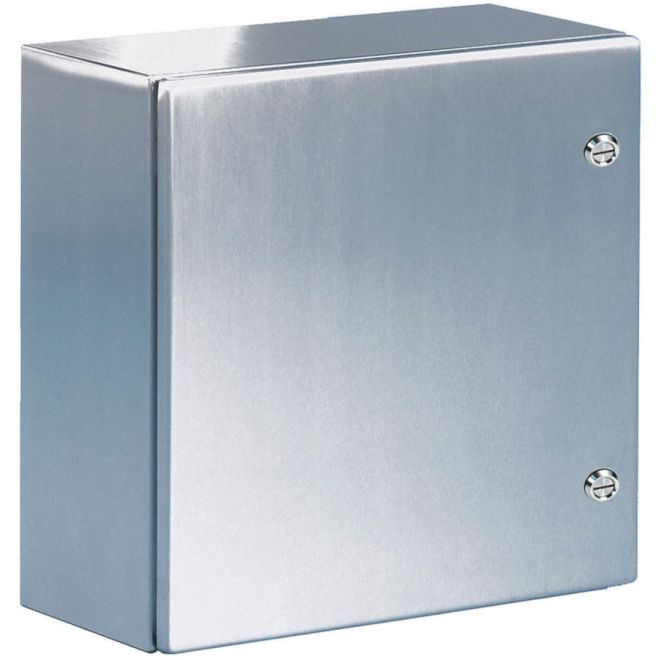

Rittal WM stainless steel enclosures can be used for virtually any application. NEMA 4X protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM363612N4 8017602 WM enclosures are readily available in all of the most popular sizes, protection categories and configurations - including universal disconnect cutout - and a full range of accessories. These new highly secure latching enclosures are available in both 304 and 316 stainless steel.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017602 |
| Manufacturer Alternate Number | WM363612N4 |
| UPC | 639889831797 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Housing with Door, Wall Mounting Blind-Nuts |
| Material Thickness | Housing, Door: 2mm (0.08"), Mounting Plate: 2.5mm (0.1") |
| Mounting Plate | Zinc-Plated 870mm (34") x 840mm (33") |
| Latching System | Slotted Head Insert Quarter Turn Latch |
| Door Cover Style | Left Hand Hinged |
| Number of Doors | 1 |
| Height (mm) | 900mm (35") |
| Width (mm) | 900mm (35") |
| Depth (Length) (mm) | 300mm (12") |
| Weight (lbs) | 145.50 |
| UOM | ea |
