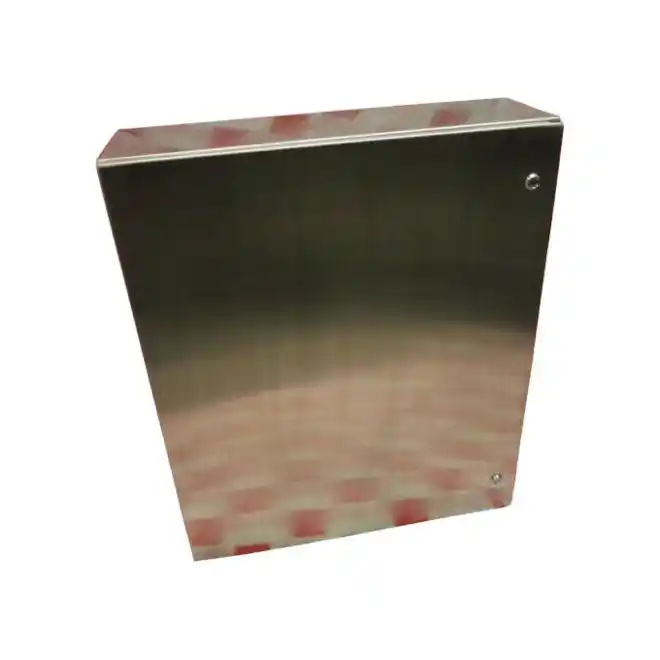

RITTAL 8017619 WM363010N4 36" 30" 10" NEMA 4X Box

SKU#:

368166

You have known Rittal quality in WM363010N4 8017619 wallmount enclosures for years. Now you can get the industry's higest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. One-piece welded cold-rolled steel body left-hand hinged door (the carbon steel single door configuration is reversible.), Single door enclosures less than 20" in height have one 1/4 turn latch with screwdriver insert, Single door enclosures 20 - 40" in height have two 1/4-turn latches with screwdriver inserts, Single door enclosures greater than or equal to 42" in height have a 3-point latching tool-to-open L-handle, Double door and disconnect enclosures have a 3-point latching tool-to-open L-handle, Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions), Foamed-in-place gasket, and Slope Top enclosures have a 20° sloped roof that overhangs the door.
Specifications
Brand RITTAL
Manufacturer Part Number 8017619
Manufacturer Alternate Number WM363010N4
UPC 639889831957
Material Stainless Steel
Surface Finish Brushed
UL Rating Type NEMA 4X
IP Rating IP66
Supply Includes Mounting Plate, Housing with Door, Wall Mounting Blind-Nuts
Material Thickness Housing, Door: 2mm (0.08"), Mounting Plate: 2.5mm (0.1")
Mounting Plate Zinc-Plated 870mm (34") x 704mm (28")
Latching System Slotted Head Insert Quarter Turn Latch
Door Cover Style Left Hand Hinged
Number of Doors 1
Height (mm) 900mm (35")
Width (mm) 760mm (30 ")
Depth (Length) (mm) 250mm (9.8")
Weight (lbs) 116.84
UOM ea
