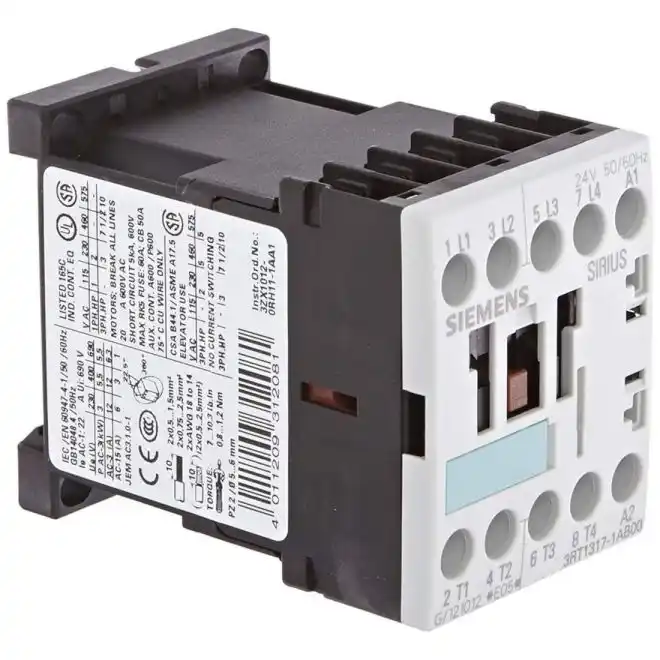

SIEMENS 3RT1317-1AB00 Power Contactors 22A Size 00
SKU#:
249504
Contactors are a significant part of safety-related applications. They are generally the actuators that perform the switching operation leading to the safe disconnection of the corresponding application or system. Sizes S0 to S3: the basic units contain two integrated auxiliary contacts (1 NO + 1 NC). Sizes S2 and S3: screw terminals with box terminal; direct connection to the connecting bar possible with cable lugs for S3 when the box terminal is removed. SIEMENS 3RT1317-1AB00 contactors fulfill the requirements for environment category A. Coil replacement is possible for sizes S0 to S3. The operating mechanisms for 3RT10 contactors are removable and can be replaced simply by unlocking and pulling them out. SIEMENS 3RT13171AB00 is comparable to SIEMENS 3RT2317-1AB00.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RT1317-1AB00 |
| Manufacturer Alternate Number | 3RT13171AB00 |
| UPC | 754554430942 |
| Rated Voltage | 480VAC |
| Coil Voltage | 24VAC |
| Contact Arrangement | 0 N/C + 4 N/O |
| Rated Current | 12A |
| Rated Load (Resistive) | 22 A |
| Number of Poles | 4 |
| Size | Frame S00 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 30,000,000 |
| IP Rating | IP20 |
| Type | Power |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 72mm |
| Weight (lbs) | 0.54 |
| UOM | ea |
