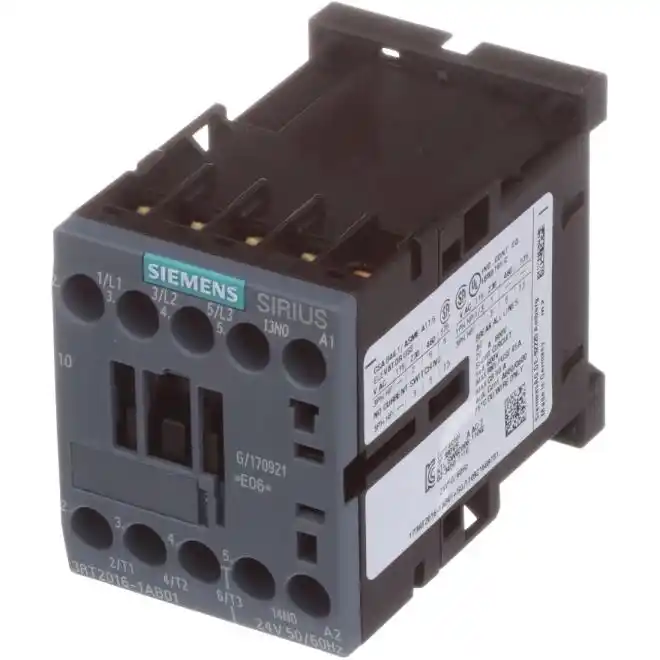

SIEMENS 3RT2016-1AB01 Power Contactors 3-Pole 9A
SKU#:
483863
Contactors are a significant part of safety-related applications. They are generally the actuators that perform the switching operation leading to the safe disconnection of the corresponding application or system. Size S00: an auxiliary contact is integrated in the basic device. Sizes S00 and S0: screw or spring-loaded terminals, spring-loaded terminals with convenient plug-in design for device connectors. SIEMENS 3RT2016-1AB01 contactors fulfill the requirements for environment category A. 3RT2 contactors are available as standard versions with AC or DC operating mechanisms or as versions with a wide-range solid-state operating mechanism and a universal actuating voltage (AC or DC operation possible). All 3RT2 contactors and 3RH2 contactor relays can be retrofitted with RC elements or varistors for damping opening surges in the coil. SIEMENS 3RT20161AB01 is comparable to Schneider Electric Square D Telemecanique LC1D09B7, LC1D09B7TQ, LC1K0910B7, LC1K0910B72, LC1K0910B7TQ.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RT2016-1AB01 |
| Manufacturer Alternate Number | 3RT20161AB01 |
| UPC | 662643907582 |
| Rated Voltage | 480VAC |
| Coil Voltage | 24VAC |
| Contact Arrangement | 0 N/C + 3 N/O |
| Rated Current | 9A |
| Rated Load (Resistive) | 22 A |
| Number of Poles | 3 |
| Size | Frame S00 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 30,000,000 |
| IP Rating | IP20 |
| HP | 2hp at 200VAC/208VAC, 3hp at 220VAC/230VAC, 5hp at 460VAC/480VAC |
| Type | Power |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 73mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
